What Is the Difference Between a Fillet and a Chamfer?

Let me paint you a picture. You’ve got a design ready to go, but then comes the classic question: "Should I use a fillet or a chamfer?" At first, it might seem like a minor detail, but trust me, it can make all the difference in how your part functions, looks, and even how much it costs to produce. I’ve been there—staring at the CAD model, weighing the pros and cons of each choice.

The truth is, the decision isn’t always straightforward. Fillets and chamfers might both modify edges, but their purposes, manufacturing processes, and applications are worlds apart. One reduces stress concentration, the other simplifies assembly. One’s about curves, the other’s all angles. Knowing which one to use can save you time, money, and a lot of potential headaches down the line.

That’s why I wanted to break this down in the simplest way possible—to give you a clear understanding of when to use a fillet versus a chamfer and how to make the best choice for your designs.

Quick Answer:

A fillet is a rounded edge that creates a smooth, flowing transition between surfaces, while a chamfer is a slanted or beveled edge that forms a straight, angled transition.

Fillet vs. Chamfer: Key Differences

Defining Fillets and Chamfers

In design and manufacturing, understanding the distinction between fillets and chamfers is essential. Both are edge modifications, but they serve different purposes and have unique characteristics. This document provides a comprehensive overview of fillets and chamfers, their forms, functions, and applications.

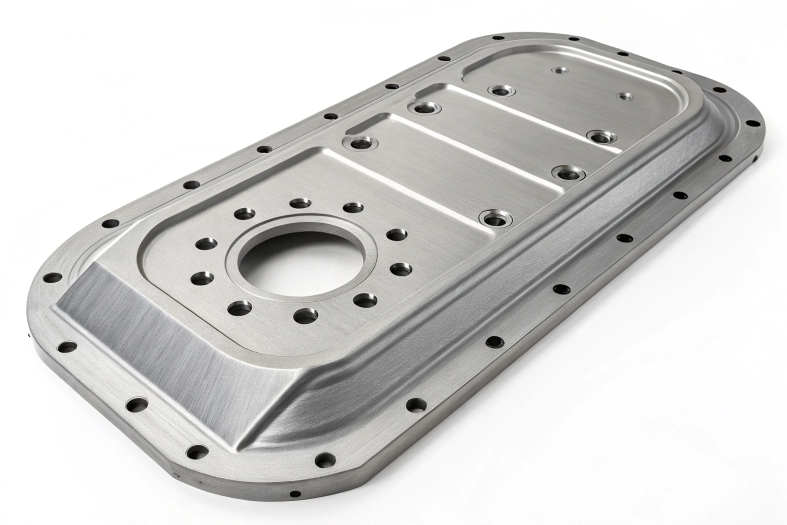

What is a Fillet?

A fillet is a rounded edge or curve added to an interior or exterior corner. This curvature softens the transition between two intersecting surfaces, creating a smooth, flowing connection.

Purpose of Fillets:

1. Reduce Stress Concentration:

   • Sharp corners are points of high stress concentration, increasing the risk of cracks and material failure.
   • Fillets distribute stress over a larger area, improving structural integrity and fatigue life.
   • This is especially critical in components subjected to dynamic loading or vibrations., such as automotive and aerospace parts.

2. Enhance Aesthetics:

   • Fillets create smooth, seamless transitions for a more refined and polished appearance.
   • Ergonomic designs benefit from softened edges, improving user comfort.

3. Improve Safety:

   • Eliminating sharp edges reduces the risk of injuries, such as cuts or abrasions.
   • Essential for consumer products and components frequently handled by people.

4. Simplify Cleaning:

   • Fillets remove crevices where dirt, bacteria, and contaminants can accumulate.
   • Widely used in sanitary applications, such as food processing and medical equipment.

Types of Fillets:

• Concave Fillet:

  • Internal corner with a smooth, inward curve.
  • Common in structural joints to reduce stress and improve durability.

• Convex Fillet:

  • External corner with a smooth, outward curve.
  • Often used for aesthetic and safety purposes.

• Full-Radius Fillet:

  • Radius is equal to half the thickness of the intersecting parts, creating a fully rounded edge.
  • Typically used in designs requiring uniform curvature.

• Variable Radius Fillet:

  • Radius changes along the length of the fillet, allowing for complex and customized transitions.
  • Useful in advanced designs for aerodynamics or structural optimization.

Visual Examples:

Annotated visuals of concave, convex, full-radius, and variable radius fillets can help illustrate their applications in different industries, such as automotive, aerospace, and architecture.

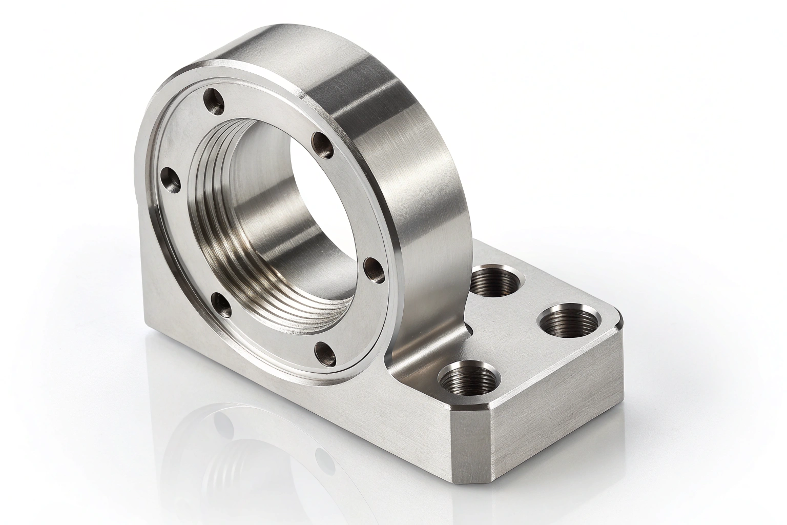

What is a Chamfer?

A chamfer is a slanted or beveled edge created by removing material from a corner at a specific angle. Unlike the smooth, curved profile of a fillet, a chamfer introduces a distinct, angled transition.

Purpose of Chamfers:

1. Facilitate Assembly:

   • Chamfered edges guide parts into place, simplifying alignment and preventing interference during assembly.
   • Common in press fits, sliding fits, and threaded connections.

2. Protect Edges:

   • Chamfers reduce the likelihood of chipping, wear, and deformation during handling and use.
   • This increases the component's lifespan and maintains functionality.

3. Enhance Aesthetics:

   • Chamfers provide crisp, defined lines, contributing to a more finished and professional appearance.
   • Often used as decorative details in furniture and industrial designs.

4. Deburring:

   • Chamfering removes sharp edges and burrs left after machining processes.
   • Improves safety and ensures better handling of parts.

Types of Chamfers:

• 45-Degree Chamfer:

  • The most common type, where the edge is beveled at a 45-degree angle.
  • Suitable for general-purpose applications.

• Angled Chamfer:

  • Chamfers at custom angles to meet specific design or functional requirements.

• Countersink:

  • A conical chamfer designed to create a recess for flat-head screws or rivets.
  • Ensures a flush finish for fasteners.

• Counterbore:

  • A cylindrical flat-bottomed hole with a chamfered edge.
  • Used to recess screw heads below the surface for a smooth appearance.

Visual Examples:

Examples of 45-degree chamfers, angled chamfers, countersinks, and counterbores highlight their functional diversity in applications such as fasteners, gears, and connectors.

Fillet vs. Chamfer: Key Differences

Applications of Fillets and Chamfers

Fillets and chamfers, while seemingly simple edge modifications, play crucial roles across diverse industries, impacting product performance, aesthetics, and manufacturability. Understanding their specific applications is essential for effective design and engineering.

Fillet Applications

Fillets are primarily employed where stress reduction, smooth transitions, safety, and hygiene are paramount.

1. Automotive:

   • Fillets are extensively used in high-stress components such as crankshafts, connecting rods, suspension arms, and engine blocks.
   • By reducing stress concentrations at critical junctions, fillets prevent cracks and fatigue failures, enhancing the reliability and lifespan of these components.
   • For example:
     • Crankshafts: Fillets at the bearing journals withstand cyclic stresses during engine operation.
     • Suspension Components: Fillets distribute impact forces, preventing premature failure and increasing durability.

2. Medical Devices:

   • Fillets improve ergonomics and patient safety by reducing sharp edges that can cause skin irritation or pressure sores.
   • In surgical instruments and implants, fillets minimize tissue damage and enhance biocompatibility.
   • For example:
     • Surgical Scalpels: Rounded edges on handles provide comfort and reduce trauma during procedures.
     • Medical Equipment: Fillets simplify cleaning and sterilization by eliminating crevices where bacteria can accumulate.

3. Aerospace:

   • Fillets are critical for enhancing fluid dynamics and improving aerodynamic performance.
   • Smooth transitions created by fillets reduce drag and turbulence, leading to increased fuel efficiency and stability.
   • For example:
     • Wing Roots: Fillets minimize drag and improve lift characteristics by reducing flow separation.
     • Fuselage-Airfoil Joints: In high-speed aircraft, fillets at the junction of the fuselage and airfoil smooth airflow, reducing turbulence and ensuring better aerodynamic stability. This optimization contributes to enhanced speed, fuel efficiency, and structural integrity under varying flight conditions.

Chamfer Applications

Chamfers are primarily used to facilitate assembly, protect edges from damage, and provide deburring.

1. Electronics:

   • Chamfers are widely used on printed circuit boards (PCBs) and connectors to simplify assembly and prevent damage.
   • For example:
     • PCBs: Chamfered edges allow smooth insertion into connectors and prevent damage to delicate pins.
     • Connector Housings: Chamfers guide mating parts together, ensuring proper alignment and preventing bent or broken pins.
   • Electronic Enclosures:
     • Chamfers protect delicate internal components such as sensors, capacitors, and microprocessors from potential impact or stress during assembly and handling. The chamfered edges also facilitate easier lid alignment and closure, improving the robustness of the final product.

2. Construction:

   • Chamfers are often used for both functional and decorative purposes.
   • For example:
     • Concrete Edges: Chamfers prevent chipping and add a more aesthetically pleasing appearance to beams, columns, and slabs.
     • Wooden Trim: Chamfers on edges add detail, prevent splintering, and improve durability.
     • Stair Treads: Chamfers prevent wear and provide a more comfortable walking surface.

3. Machinery:

   • Chamfers facilitate smooth assembly and provide edge deburring, ensuring safety and ease of use.
   • For example:
     • Gears: Chamfers on gear teeth allow for smooth meshing, reducing noise and wear during operation.
     • Threaded Holes: Chamfered edges guide bolts during insertion, preventing cross-threading and improving assembly efficiency.
     • Machined Components: Chamfering removes sharp edges and burrs left after machining, improving safety for handling and preventing damage to mating parts.

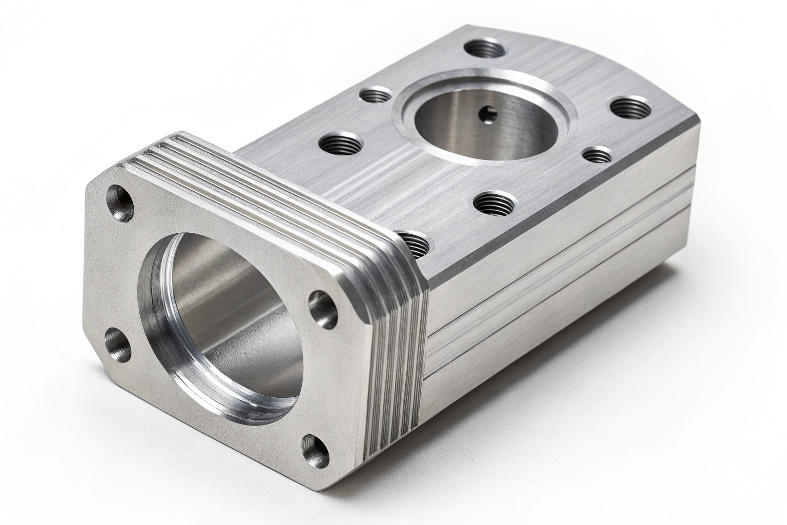

Fillet vs. Chamfer in CNC Machining

The choice between a fillet and a chamfer significantly impacts the CNC machining process, influencing tooling, programming, tolerances, cost, and production time. Understanding these implications is crucial for efficient manufacturing.

Machining Methods

1. Fillets:

   • Tooling:
     • Fillets often require specialized tools such as ball end mills. These tools feature a hemispherical cutting tip that creates the rounded profile of a fillet.
     • The radius of the ball end mill determines the fillet's size. Larger fillets require larger diameter ball end mills, while smaller fillets demand more delicate tools.
     • Specialized radius cutters or form tools may be used for specific fillet profiles, especially in high-volume production.
   • Programming:
     • CNC programming for fillets involves complex toolpath generation to ensure a smooth, continuous curve.
     • CAM (Computer-Aided Manufacturing) software plays a crucial role, allowing programmers to define fillet geometry and generate the necessary G-code.
     • Advanced techniques like 3D profiling and surface machining are often employed to achieve precision. Multiple tool passes may be required for fine finishing.
   • Challenges:
     • Maintaining consistent radii, achieving smooth surface finishes, and adhering to tight tolerances can be difficult.
     • Factors like tool deflection, tool wear, and machine vibrations may compromise quality.

2. Chamfers:

   • Tooling:
     • Chamfers are simpler to machine and can be created using:
     • Chamfering tools: Designed specifically for chamfers, with angled cutting edges matching the required angle.
     • Standard end mills: Suitable for simple chamfers and smaller production runs.
     • Fly cutters: Used for larger chamfers or custom angles.
   • Programming:
     • CNC programming for chamfers is straightforward. The programmer defines the chamfer angle and distance or depth.
     • This process can be executed with basic G-code commands or through CAM software, making it quick and efficient.
   • Advantages:
     • Chamfers are easier and faster to machine due to their straight-line cutting motion and the availability of dedicated chamfering tools.

Tolerance Considerations

1. Fillets:

   • Achieving tight tolerances on fillets is challenging and often requires finishing passes with smaller tools.
   • The curvature of fillets complicates measurement and inspection compared to chamfers.
   • Tight tolerances generally result in increased machining time and cost.

2. Chamfers:

   • Chamfers are easier to machine to tight tolerances due to their straight-line cutting motion.
   • Standard measuring tools, such as calipers and micrometers, can easily verify the chamfer angle and dimensions, streamlining the inspection process.

Cost and Time Implications

1. Fillets:

   • Fillets are more complex to machine, requiring specialized tools, advanced programming, and multiple passes for precision.
   • These factors increase production costs and machining time.
   • Potential for Tool Wear: The use of ball end mills at slower feed rates further contributes to higher costs.

2. Chamfers:

   • Chamfers are more cost-effective and faster to produce due to simpler machining methods and the availability of dedicated tools.
   • The ease of achieving tight tolerances and the reduced need for finishing operations make chamfers ideal for high-volume production.

Summary Table: Fillet vs. Chamfer in CNC Machining

When to Use a Fillet vs. a Chamfer

The decision to use a fillet or a chamfer depends on specific design requirements and the intended function of the part. Factors such as stress, assembly, aesthetics, cost, and manufacturing processes must be carefully considered to make the right choice.

Use a Fillet When:

1. Reducing Stress Concentration is Critical:

   • Sharp corners amplify stress, making them vulnerable to cracking or failure under load.
   • Fillets distribute stress over a larger area, reducing stress concentration and improving the fatigue life and strength of components.
   • Essential in applications with dynamic loading, vibration, or cyclic stress, such as:
     • Automotive Crankshafts: Fillets reduce stress at bearing journals, ensuring durability.
     • Aircraft Wings: Fillets minimize stress at junctions, enhancing structural integrity.
     • Structural Beams: Prevent stress-induced cracking at corner joints.

2. Aesthetic or Ergonomic Considerations are Important:

   • Fillets create smooth, flowing transitions that improve the visual appeal and ergonomic quality of a design.
   • Often used in consumer products, architectural details, and medical devices to provide a finished and refined look.
   • In ergonomic designs, fillets remove sharp edges, ensuring comfort and safety during handling.

3. Sharp Edges Need to Be Eliminated for Safety:

   • Fillets are critical for reducing the risk of cuts, abrasions, and injuries during handling, assembly, and use.
   • Widely used in consumer products, toys, and applications with frequent human interaction to ensure safety.
   • For example:
     • Children’s Toys: Smooth fillets ensure safe play without sharp edges.
     • Medical Equipment: Rounded fillets enhance usability and minimize risk to users.

Use a Chamfer When:

1. Parts Need Easy Assembly:

   • Chamfered edges guide mating parts into place, preventing misalignment or interference during assembly.
   • Ideal for:
     • Press Fits: Chamfers guide components into position.
     • Threaded Connections: Chamfers on bolt heads and holes facilitate smooth engagement.

2. Edges Require Protection from Damage:

   • Chamfers protect edges from chipping, wear, and deformation caused by handling, storage, or impact.
   • Commonly seen in components like gears, PCBs, and structural materials, where durable edges are critical.

3. Deburring or Minimal Edge Breaking is Sufficient:

   • Chamfers are an effective and cost-efficient method for deburring, removing sharp edges or burrs left after machining.
   • Suitable for applications where edge refinement is necessary but a full fillet would be excessive.
   • For instance:
     • Gears: Chamfers ensure smooth engagement and prevent damage.
     • Machined Parts: Chamfers improve safety and usability without adding significant cost.

Creating Fillets and Chamfers (Brief Overview)

Fillets and chamfers can be created using various methods depending on the material, desired geometry, and production volume.

CAD Software:

• Most modern CAD (Computer-Aided Design) software includes dedicated tools for creating fillets and chamfers.
• Designers can define:
  • Fillet Radius: Smooth curvature for stress reduction and aesthetics.
  • Chamfer Angle and Distance: Sharp, angled edges for assembly and edge protection.
• The software automatically generates accurate and consistent geometry, streamlining the design process.

Machining:

1. Milling:

   • Fillets:
     • Ball end mills are commonly used to create rounded profiles.
     • For complex geometries, multiple passes and finishing operations may be required.
   • Chamfers:
     • Chamfering tools or standard end mills can efficiently create angled edges in single-pass operations.
   • Milling offers versatility for producing both fillets and chamfers.

2. Grinding:

   • Grinding is a precision machining process often used to achieve tight tolerances and smooth surface finishes.
   • Grinding wheels with specific profiles can create both fillets and chamfers with consistent results.

Other Methods:

1. Molding:

   • In processes like plastic injection molding or die casting, fillets and chamfers can be incorporated directly into the mold or die, eliminating secondary machining.

2. Casting:

   • In sand casting or similar methods, fillets and chamfers can be integrated into the pattern to ensure the final part includes the desired edge features.

3. 3D Printing:

   • Additive manufacturing processes allow for the creation of complex geometries, including fillets and chamfers, directly from digital models.
   • Ideal for prototyping or custom parts with intricate designs.

Case Studies

Real-world examples illustrate the practical applications and benefits of fillets and chamfers. These case studies demonstrate how these seemingly simple features contribute to improved performance, manufacturability, and reliability in various industries.

Fillets in Automotive Suspension Components

Automotive suspension systems are subjected to significant dynamic loads and stresses during operation. Components such as control arms, knuckles, and suspension links experience complex forces from road impacts, braking, and acceleration. Fillets play a crucial role in ensuring the durability and safety of these components.

1. Stress Reduction and Fatigue Life:

   • Sharp corners and abrupt transitions on suspension components create stress concentrations, which can lead to fatigue cracks and eventual failure.
   • Fillets are strategically incorporated at critical junctions and transitions to mitigate these stress concentrations. By distributing stress over a larger area, fillets reduce peak stress values and significantly improve the fatigue life of the component.
   • For example:
     • At the connection points between the control arm and the suspension knuckle.
     • At the transitions between different cross-sections of the control arm itself.
   • This stress reduction is crucial for ensuring the safety and reliability of the vehicle under repeated dynamic loads.

2. Material Selection and Manufacturing:

   • The size and shape of fillets are determined through finite element analysis (FEA) and rigorous testing, factoring in material properties, loading conditions, and the desired fatigue life.
   • Manufacturing processes like forging or casting, followed by precision machining, are used to create fillets with the required geometry and surface finish.
   • Tight control over these parameters ensures that the fillets function as intended.

3. Example:

   • A lower control arm in a car’s suspension connects to the wheel hub carrier, experiencing high stress during cornering and braking.
   • A properly designed and manufactured fillet at this connection point distributes the load, preventing stress from concentrating at a single point. This reduces the risk of fatigue failure and ensures the control arm can withstand the repeated stresses of normal driving conditions.

Chamfers in Connector Housings

Connector housings, used in electronics, telecommunications, and various other industries, rely on chamfers to achieve precise alignment, easy assembly, and protection of delicate components.

1. Ease of Assembly and Alignment:

   • Chamfers on the edges of connector housings and their mating connectors act as guides during assembly.
   • These angled surfaces facilitate smooth insertion, even when connectors are slightly misaligned, ensuring proper alignment without damage.
   • For example:
     • In high-density connectors with numerous pins, chamfers ensure that all pins align correctly with their corresponding sockets, avoiding misalignment or bending.

2. Protection of Contacts and Pins:

   • Chamfers prevent the sharp edges of connector housings from damaging delicate pins and contacts during handling and mating.
   • This is especially critical in connectors frequently mated and unmated, where wear and tear could degrade performance over time.

3. Example:

   • A D-sub connector, commonly used to connect computers to peripheral devices, features chamfers on both the housing and the mating connector.
   • These chamfers ensure precise alignment and smooth sliding of the connectors together, preventing damage to pins and guaranteeing a reliable connection.
   • Users benefit from easier connection in tight spaces or low-visibility conditions, enhancing usability.

4. Specific Applications:

   • Chamfers are particularly important in:
     • High-density connectors: Precise alignment prevents damage and ensures reliable performance.
     • Connectors in frequent use: Chamfers reduce wear and tear, extending the life of the connector.

Conclusion

Fillets and chamfers might seem like minor details, but as we've seen, they play a massive role in engineering and manufacturing. Fillets are your go-to for reducing stress concentration, enhancing aesthetics, and ensuring safety, while chamfers shine in simplifying assembly, protecting edges, and improving functionality. Understanding when and how to use each can make all the difference in your design's performance and reliability.

If you're ever stuck deciding between a fillet and a chamfer, or if you're looking for CNC machining services that prioritize precision and quality, let's connect. At PROMACHINED, we specialize in helping businesses like yours bring designs to life with expert machining and unbeatable craftsmanship.

Curious to learn more or want to get started? Visit us at www.promachined.com. Feel free to reach out—I’d be happy to chat more about how we can make your project a success. Until then, happy designing, my friend!

FAQ:

What is the difference between a fillet and a chamfer in CAD?

In CAD software, a fillet is a rounded edge applied to interior or exterior corners, creating a smooth transition. A chamfer is a beveled edge cut at an angle, forming a straight, slanted transition. Fillets are typically used for stress reduction and aesthetics, while chamfers simplify assembly and protect edges.

What is the difference between a chamfer, a fillet, and a bevel?

• Fillet: A rounded edge or curve used to smooth transitions and reduce stress concentration.
• Chamfer: A slanted or beveled edge cut at a specific angle, commonly used for ease of assembly and edge protection.
• Bevel: A slanted edge, often used to join two surfaces at an angle that are not perpendicular. While similar to a chamfer, bevels are typically used for joining or creating specific angled surfaces rather than simply breaking an edge. A bevel is often larger than a chamfer.

What is the purpose of a chamfer?

The primary purposes of a chamfer are:

1. Ease of Assembly: Guides mating parts together, improving alignment and preventing interference.
2. Edge Protection: Prevents chipping, wear, or deformation.
3. Deburring: Removes sharp edges left after machining.
4. Aesthetics: Enhances visual appeal by adding a clean, defined edge for a polished look.

Is a chamfer always 45 degrees?

No, a chamfer is not always 45 degrees. While 45° is a common angle, chamfers can be cut at various angles to meet specific design or functional requirements. Examples include 30°, 60°, or angles required for specific applications like countersinking or aligning parts. Chamfers are commonly specified by their angle and a linear dimension (e.g., "1mm x 45° chamfer").

Which is cheaper to machine, a fillet or a chamfer?

A chamfer is generally cheaper to machine compared to a fillet. This is because chamfers require simpler tooling (such as chamfering bits or standard end mills) and straightforward programming, allowing for faster single-pass machining. Fillets, on the other hand, require specialized tools like ball-end mills, more complex toolpaths, and often multiple passes, which increase production time and cost.
