In the fast-paced world of automotive manufacturing, precision and efficiency are paramount. Traditional methods of production often struggle to meet the high standards required for modern vehicles, particularly in terms of the complex designs and tight tolerances needed. This is where CNC (Computer Numerical Control) machining plays a pivotal role, offering unmatched accuracy and speed. As automotive designs become increasingly intricate, the demand for more advanced machining techniques has surged, with CNC technology providing the perfect solution to address these challenges.
Direct Answer:
CNC machining is essential in automotive production for creating high-precision components like engine parts, transmission systems, and chassis. It ensures tight tolerances, reduces material waste, and speeds up production, making it indispensable for manufacturing high-performance vehicles at scale.
Understanding CNC Machining
CNC machining is a subtractive manufacturing process where material is gradually removed from a workpiece using computer-controlled machines. The machines follow precise instructions programmed into the CNC system, enabling complex operations like turning, milling, drilling, and grinding. For automotive production, CNC machines operate at high precision to create parts with the required dimensional accuracy and surface finish.
There are several types of CNC machines used in automotive manufacturing, including CNC mills, CNC lathes, CNC grinders, and CNC EDM (Electrical Discharge Machining). Each machine is designed for specific operations, whether it's shaping a part, cutting threads, or finishing a surface to a mirror-like quality.
CNC Machining in Automotive Production
Precision Parts Manufacturing
Automotive components, especially those in engine, transmission, and braking systems, require extreme precision due to their high performance and safety requirements. CNC machining ensures that every part adheres to the exact specifications defined by the engineering design.
For instance, when producing engine components like cylinder heads, CNC machines are capable of drilling holes for coolant channels, valve seats, and other intricate features with tolerances as tight as ±0.01 mm. The use of multi-axis CNC machines allows for simultaneous movement in multiple directions, which enables complex features to be machined in a single setup, minimizing errors and reducing processing time.
In transmission systems, components like gears and shafts require high levels of dimensional accuracy and surface finish to ensure smooth meshing and efficient power transmission. CNC machines use specialized tools, like ball nose end mills, to create gear teeth with specific profiles. These teeth are cut with precision to ensure minimal backlash and noise during operation, which is critical for long-term durability.
Key Technologies in Precision CNC Machining
- Laser Measurement Systems: These systems are used for in-process measurement, which checks the part’s dimensions and adjusts machine movements in real time to maintain tight tolerances.
- Probing Systems: CNC machines can be equipped with touch probes that measure the workpiece directly, allowing the machine to adjust automatically for slight deviations from the desired geometry.
- High-Speed Spindles: Spindles that operate at high speeds are essential for producing fine finishes and maintaining accuracy during high-feed-rate machining operations.
- Cooling and Lubrication Systems: These systems prevent overheating of the cutting tools and workpieces, ensuring the integrity of the part and extending tool life.
Prototyping and Design Validation
CNC machining plays a crucial role in the prototyping phase of automotive production. The ability to quickly manufacture prototypes allows engineers to validate part designs before committing to mass production. CNC machining is particularly useful for testing functional aspects of new automotive components, such as engine mounts, suspension brackets, and prototype tooling.
Automakers can use CNC machining to produce parts from the same materials intended for final production, allowing for realistic performance testing. For example, when developing a new gearbox design, CNC machining allows for the creation of fully functional prototypes in aluminum or steel, providing insight into the part's performance under actual operating conditions.
Benefits of CNC in Prototyping:
- Speed: CNC machining can produce prototypes much faster than traditional manufacturing methods like casting or injection molding.
- Low Setup Costs: CNC machining doesn’t require expensive tooling or molds, making it a cost-effective solution for prototyping, especially for low-volume or custom parts.
- Accuracy: Prototypes made with CNC machining maintain the same tolerances and specifications as production parts, ensuring reliable testing results.
Mass Production of Automotive Components
CNC machining is essential in high-volume automotive production. The ability to replicate parts with exceptional precision across large production runs is one of the main reasons CNC machining is widely adopted in the automotive industry.
CNC machines can be programmed to handle various operations, such as milling, drilling, turning, and threading, all in one seamless production cycle. By automating the entire process and minimizing manual labor, manufacturers can produce thousands of identical components with minimal variation.
Key Processes for Mass Production:
- Automated Part Handling: Robotic arms and automated conveyors can move parts between CNC machines, ensuring continuous and uninterrupted production.
- Multi-Part Machining: Advanced CNC machines can hold multiple parts simultaneously, which reduces setup time and optimizes production cycles.
- Batch Production: CNC machines can be set up for batch processing, allowing automotive manufacturers to produce large quantities of parts in shorter time frames.
- Lean Manufacturing Principles: CNC machining supports lean manufacturing by reducing material waste, minimizing idle time, and ensuring uniformity across all parts produced.
Advantages of CNC Machining in the Automotive Industry
Accuracy and Precision
Accuracy and precision are paramount in automotive manufacturing, where even the smallest deviation can lead to catastrophic failure in critical systems. CNC machining allows manufacturers to achieve extremely tight tolerances, with many parts being produced to tolerances of ±0.001 mm or better. This is especially important in components such as camshafts, piston rings, and valve components, where even a tiny imperfection can impact engine performance.
In critical parts like brake rotors and safety systems, CNC machines can achieve precise surface finishes, ensuring that parts function smoothly and consistently. The ability to meet the tightest tolerances ensures that parts fit together perfectly, improving the overall performance and reliability of the vehicle.
Cost-Effectiveness in Production
CNC machining contributes to cost savings in automotive manufacturing in several ways:
- Material Efficiency: CNC machining is a subtractive process, meaning material is only removed where needed, which reduces material waste compared to casting or forging methods.
- Reduced Labor Costs: CNC machines operate autonomously once programmed, minimizing the need for human labor in production. The use of automated systems also reduces the risk of human error, improving part consistency.
- Reduced Tool Wear and Downtime: Advanced CNC systems are designed to optimize tool life by automatically adjusting parameters to avoid excessive wear, reducing tool change frequencies and improving production continuity.
Flexibility in Design Changes
CNC machining offers unmatched flexibility in automotive manufacturing. When a design change occurs, reprogramming the CNC machine is often faster and more cost-effective than making changes to physical molds or dies used in traditional manufacturing methods.
For example, if a new model of an automobile requires an updated gearbox design or a change in suspension geometry, CNC machines can accommodate these changes with minimal lead time. By modifying the program, manufacturers can quickly adapt to new requirements, making CNC machining ideal for the rapidly changing automotive industry.
Key Automotive Components Manufactured by CNC Machines
Engine Parts
Engine components are often the most critical parts in terms of performance and safety. CNC machining plays a vital role in producing these parts with the required precision and durability. For example:

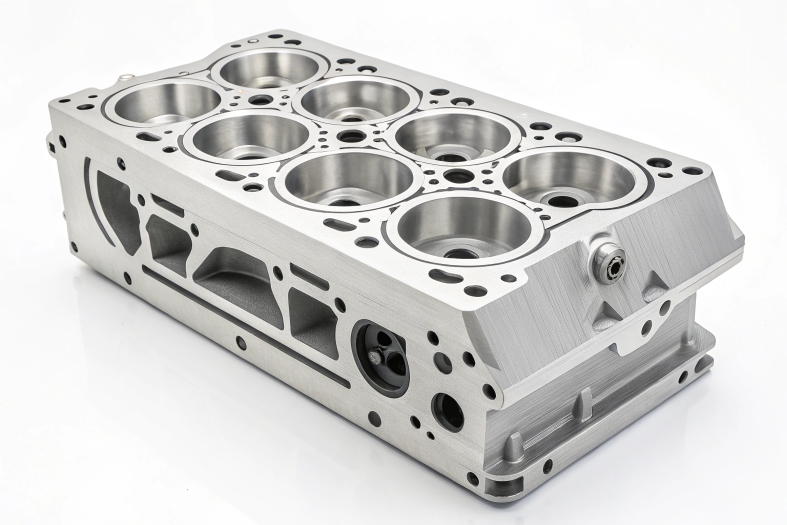

- Cylinder Heads: CNC machines create the intricate valve seats, coolant passages, and combustion chamber designs that are essential for efficient engine operation.

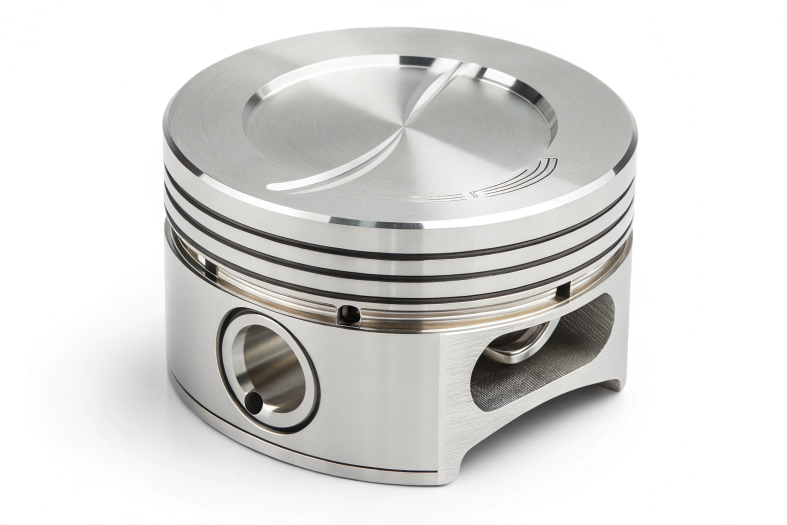

- Pistons: CNC machines are used to produce pistons with precise dimensions, ensuring that they fit perfectly within the engine block, maximizing combustion efficiency and power output.
- Crankshafts and Camshafts: CNC machining ensures the precise shape and size of these rotating components, which must fit into specific tolerances to ensure smooth engine operation.
Transmission Components
Transmission components, such as gears, shafts, and bearings, require CNC machining for accurate tooth profiles and surface finishes. CNC technology ensures that gears mesh precisely, preventing slipping and reducing the risk of noise and wear. Key applications include:
- Gear Cutting: CNC machines use specialized tools to cut gear teeth with precise profiles, ensuring smooth engagement and efficient torque transfer.
- Shaft Turning: CNC lathes are commonly used to turn transmission shafts to the required dimensions, including features like splines, threads, and grooves.
Chassis and Suspension Parts
Chassis and suspension parts must be manufactured to handle the stresses and strains that occur during operation. CNC machining provides the precision needed for these heavy-duty components. Examples include:
- Control Arms: CNC machining is used to produce control arms with precise dimensions, ensuring proper alignment and suspension movement.
- Shock Absorber Mounts: CNC machining creates mounts for shock absorbers, ensuring a secure fit and optimal performance.
Interior Components
CNC machining is used for high-precision automotive interior components such as dashboard panels, door handles, and trim. These components often require detailed features, such as ergonomic contours and mounting points, which are easily created using CNC machines. Additionally, CNC machines provide a high-quality surface finish, ensuring that parts look aesthetically pleasing while maintaining functionality.
Challenges in CNC Machining for Automotive Production
Material Selection and Durability
Choosing the right material for automotive components is crucial. Components such as engine blocks, pistons, and suspension parts must be made from materials that can withstand extreme conditions such as heat, pressure, and vibration. CNC machining allows manufacturers to work with a wide range of materials, but each material poses unique challenges in terms of tool wear, cutting speed, and material removal rates.
Production Time vs. Quality
While CNC machining is highly efficient, the balance between speed and quality is a challenge in high-volume automotive production. The demand for faster production times must be balanced with the need to maintain the high-quality standards required for safety-critical components. Striking the right balance often requires advanced CNC technologies, like high-speed spindles and optimized tooling.
The Future of CNC Machining in the Automotive Industry
Automation and Robotics Integration
The future of CNC machining in the automotive industry lies in automation. The integration of robotics into CNC systems allows for faster production cycles, reduced downtime, and improved flexibility. Automated CNC cells can work around the clock with minimal human intervention, enhancing productivity.
Increasing Precision and Speed
The ongoing development of CNC machine tools will lead to even greater precision and faster production speeds. Technologies like multi-axis machining and additive manufacturing hybrid systems will help manufacturers meet the growing demands for complex geometries and higher throughput in the automotive industry.
Conclusion
CNC machining plays a vital role in the modern automotive industry by enabling the production of high-precision, cost-effective, and complex components. With its ability to handle prototyping, mass production, and adaptation to design changes, CNC machining continues to be an indispensable technology in the automotive sector. The integration of automation, advanced materials, and faster machining processes promises to further enhance CNC machining's role in the future of automotive manufacturing.
FAQ:
1. What is the role of CNC machine?
CNC (Computer Numerical Control) machines play a crucial role in modern manufacturing by automating the process of cutting, shaping, and drilling materials to create precise components. They follow programmed instructions to produce complex parts with high accuracy and repeatability. CNC machines are used in various industries, including automotive, aerospace, and medical, to manufacture parts with tight tolerances and consistent quality.
2. What car parts are CNC machined?
CNC machining is used to manufacture a wide variety of car parts, especially those that require high precision. Some common car parts produced using CNC machining include:
- Engine Components: Cylinder heads, pistons, camshafts, and crankshafts.
- Transmission Parts: Gears, shafts, and bearings.
- Chassis and Suspension Components: Control arms, shock absorber mounts, and suspension brackets.
- Interior Components: Dashboard panels, door handles, and trim pieces.
- Brake Components: Rotors, calipers, and hubs.
3. What does a CNC machinist do?
A CNC machinist operates CNC machines to manufacture parts based on specific designs and blueprints. Their responsibilities include:
- Setting up and calibrating CNC machines for different types of machining processes (milling, turning, drilling).
- Loading and unloading materials and workpieces into the machines.
- Programming CNC machines by inputting design specifications.
- Monitoring the machining process to ensure parts meet required tolerances.
- Inspecting finished parts for accuracy and quality.
- Performing routine maintenance on CNC machines to ensure proper operation.
4. What is CNC machining in manufacturing?
CNC machining in manufacturing refers to the use of computer-controlled machines to automate the process of cutting, shaping, and finishing materials. It is a highly accurate and efficient method for producing parts, typically from metals, plastics, and composites. CNC machining allows manufacturers to create complex geometries and detailed features that would be difficult or impossible to achieve using traditional manual methods. It is widely used in industries like automotive, aerospace, electronics, and medical device manufacturing for producing both small and large quantities of parts with high precision.
