Precision machining often encounters the challenge of working with hard-to-machine materials. These materials, including superalloys, hardened steels, and ceramics, pose difficulties due to their strength, heat resistance, and abrasiveness. The struggle to achieve precise dimensions and surface finishes can lead to increased tool wear, higher costs, and extended production times. Understanding these challenges is critical for selecting the right tools and strategies to optimize efficiency.
The hardest materials to machine include titanium, Inconel, tungsten, tool steel, Haynes 188, Hastelloy, ceramics, and CFRP.

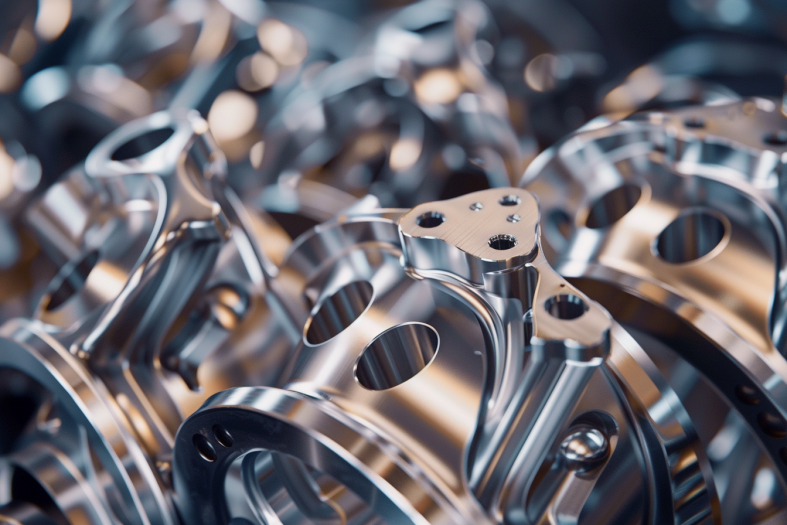

How to Process Titanium Alloys
Processing titanium alloys can truly be considered an art. They are not only strong, corrosion-resistant, and lightweight but also notoriously challenging to machine. For example, their poor thermal conductivity concentrates cutting heat on the tool tip, often causing rapid tool wear or even failure. To achieve precise dimensions and smooth surfaces, high-rigidity machines, durable coated tools, and high-pressure cooling systems are essential. Drawing on our expertise, we strive to optimize time and costs while delivering flawless results for titanium alloy parts, particularly in aerospace and medical applications.
Material Properties
Material Composition:
Titanium alloys mainly consist of titanium and other metallic elements, such as aluminum, vanadium, and zirconium. Different grades and compositions are available, with TC4 (Ti-6Al-4V) being the most common, containing 6% aluminum and 4% vanadium for a balance of strength and machinability.
Physical Properties:
- Density: Approximately 4.5 g/cm³, 40% lighter than steel but equally strong or stronger.
- Melting Point: 1668°C, making it suitable for high-temperature applications.
- Elastic Modulus: Lower than steel, making it prone to vibration during machining, which affects precision.
- Thermal Conductivity: Low, causing cutting heat to concentrate on the tool.
Chemical Properties:
- Corrosion Resistance: Outstanding resistance to corrosion in various environments, including marine and acidic conditions.
- Oxidation Resistance: Performs well under high-temperature conditions.
- Biocompatibility: Ideal for medical implants and surgical instruments.
Machining Challenges and Difficulties
Machining Difficulty:
- Cutting Challenges: High hardness and low thermal conductivity lead to concentrated heat at the tool tip, causing rapid tool wear.
- Surface Finishing: High material stickiness can cause surface damage, such as scratches or burrs.
- Precision Control: Low elastic modulus makes titanium alloys prone to vibration, affecting dimensional accuracy and surface quality.
Equipment Requirements:
- High-Rigidity Machines: Essential to minimize vibration and ensure stability during machining.
- Cooling Systems: High-efficiency cooling systems are required to dissipate heat and prolong tool life.
- Tool Selection: Coated carbide tools or ultra-hard tools like CBN are recommended.
Machining Parameters:
- Cutting Speed: Recommended at 25-35 m/min to reduce tool wear.
- Feed Rate: Adjust to keep cutting forces within a safe range.
- Cooling Method: Use high-pressure coolant directly on the cutting zone.
Applications and Uses
Typical Application Scenarios:
- Aerospace: Titanium alloys are widely used for aircraft fuselages, engine parts, and turbine blades due to their lightweight and high strength.
- Medical Devices: Their biocompatibility makes them suitable for artificial joints, bone screws, and dental implants.
- Marine Engineering: Corrosion resistance makes them ideal for underwater equipment and marine pipelines.
Customer Needs:
When selecting titanium alloy machining, customers often prioritize high precision, superior surface finish, and controlled processing costs. This requires experienced manufacturers with reliable quality control systems.
Cost and Efficiency Analysis
Machining Costs:
- Tooling Costs: Frequent tool wear increases replacement costs.
- Time Costs: Low cutting speeds extend machining times.
- Energy Costs: High-pressure cooling systems and rigid machines consume more energy.
Machining Efficiency:
- Factors Impacting Efficiency: Tool life, machining parameters, and cooling effectiveness.
- Optimization Measures: Proper tool selection and parameter adjustments can improve efficiency.
Cost-Saving Methods:
- Use high-performance coated tools to extend tool life.
- Improve coolant formulations to reduce thermal damage to tools.
- Employ step-by-step machining to mitigate heat accumulation and tool wear.
Typical Case Studies and Solutions
Successful Case:
For aerospace titanium alloy parts, coated carbide tools and high-pressure cooling systems were used to achieve a surface roughness of Ra 0.8 or better, while tool life improved by 50%.
Innovative Technologies:
- Vibration-Assisted Machining: Reduces cutting resistance and enhances surface quality.
- Electrical Discharge Machining (EDM): Ideal for complex titanium alloy shapes, avoiding high-temperature cutting issues.
Results Demonstrated:
Optimized machining solutions increased production efficiency by 30%, with parts meeting stringent precision requirements.
Machining Recommendations and Professional Advice
Tool Selection:
- Prefer coated carbide tools (e.g., TiAlN-coated).
- Choose ultra-hard tools such as CBN or PCD for specific requirements.
Parameter Optimization:
- Maintain cutting speeds at 25-35 m/min and feed rates at 0.1-0.3 mm.
- Use high-pressure coolant sprays to dissipate heat efficiently.
Customer Tips:
When selecting a machining service provider, prioritize those with extensive titanium alloy processing experience and advanced equipment to ensure precision and quality. Collaborating with the provider to develop tailored machining plans can further reduce costs and enhance outcomes.

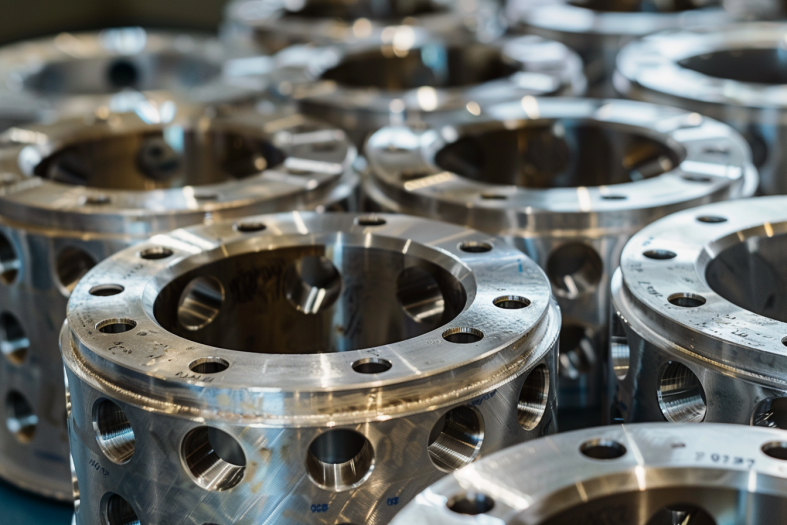

How to process Inconel
Machining Inconel is tough. Its strength and heat resistance are great but make it brutal on tools. Poor thermal conductivity traps heat, causing rapid wear, and its hardness risks burrs.
Material Properties
Material Composition
Inconel is a nickel-based high-temperature alloy primarily composed of nickel and chromium. It also contains small amounts of iron, molybdenum, niobium, cobalt, and titanium. These elements provide exceptional high-temperature performance and corrosion resistance.
Physical Properties
- Density: 8.2-8.5 g/cm³, making it a high-density material.
- Melting Point: Approximately 1350°C, suitable for extreme high-temperature environments.
- Hardness: High hardness, requiring advanced cutting tools.
- Thermal Conductivity: Low thermal conductivity causes heat to concentrate at the cutting tool and workpiece.
Chemical Properties
- Corrosion Resistance: Excellent resistance to oxidation, acidic environments, and marine corrosion.
- Oxidation Resistance: Performs exceptionally well in high-temperature oxidative conditions for extended periods.
- Fatigue Resistance: Maintains high fatigue resistance even under extreme temperature fluctuations.
Machining Challenges and Difficulties
Machining Difficulty
- High Hardness: The hardness of Inconel increases cutting forces, leading to rapid tool wear.
- Heat Concentration: Low thermal conductivity traps heat in the cutting zone, accelerating tool failure.
- Surface Quality: Machining may result in burrs and surface defects.
Equipment Requirements
- High-Rigidity Machines: Essential to minimize vibration and ensure stability when machining hard materials.
- High-Pressure Cooling System: Helps dissipate cutting heat and lubricates the cutting area to extend tool life.
- Specialized Tools: Coated carbide or ceramic tools are recommended to enhance wear resistance.
Machining Parameters
- Cutting Speed: Should be controlled at 20-30 m/min to reduce tool wear.
- Feed Rate: Adjusted based on tool material and workpiece characteristics, generally between 0.1-0.3 mm/rev.
- Coolant: High-pressure coolant directed at the cutting zone effectively minimizes heat buildup.
Applications and Uses
Typical Application Scenarios
- Aerospace: Used in manufacturing high-temperature components such as turbine blades and nozzles for jet engines.
- Power Generation: Widely applied in gas turbines and nuclear reactor components due to its heat and corrosion resistance.
- Chemical Industry: Ideal for heat exchangers, reactors, and piping systems in corrosive environments.
Customer Needs
Customers typically require Inconel components with high precision, superior surface quality, and reliable performance under extreme conditions. These demands necessitate mature techniques and stringent quality control.
Cost and Efficiency Analysis
Machining Costs
- Tooling Costs: High due to frequent tool wear when machining Inconel.
- Time Costs: Low cutting speeds result in longer machining times.
- Energy Costs: The use of high-rigidity equipment and cooling systems increases energy consumption.
Machining Efficiency
- Challenges: Inconel’s hardness and heat management demands significantly reduce machining efficiency.
- Optimization Measures: Proper tool selection and optimized machining parameters can improve efficiency.
Cost-Saving Methods
- Implement multi-axis machining to reduce operations and time.
- Use high-wear-resistance coated tools to extend tool life.
- Employ advanced cooling techniques to mitigate heat-related issues.
Typical Case Studies and Solutions
Successful Case
An aerospace client required a batch of Inconel 718 turbine blades. By utilizing ceramic tools and ultrasonic vibration-assisted machining technology, the surface roughness was successfully controlled within Ra 0.6, and tool life was improved by 40%.
Innovative Technologies
- Ultrasonic Vibration-Assisted Machining: Reduces cutting forces and improves surface quality.
- Dry Machining: In specific scenarios, dry machining eliminates the need for coolant, reducing costs.
Results Demonstrated
After process optimization, production efficiency increased by 25%, with a 100% acceptance rate for parts. Overall machining costs decreased by 15%.
Machining Recommendations and Professional Advice
Tool Selection
- Prefer TiAlN-coated carbide tools for standard cutting operations.
- For high-strength machining, use ceramic or PCBN tools for superior heat resistance.
Parameter Optimization
- Maintain cutting speed at 20-30 m/min to balance efficiency and tool life.
- Increase coolant flow rate and pressure to minimize heat concentration in the cutting zone.
Customer Tips
When selecting a machining service provider, prioritize those with extensive experience in Inconel processing and advanced equipment capabilities. Collaborate with the service provider to discuss specific process optimizations, ensuring reduced costs and improved efficiency while maintaining high quality.

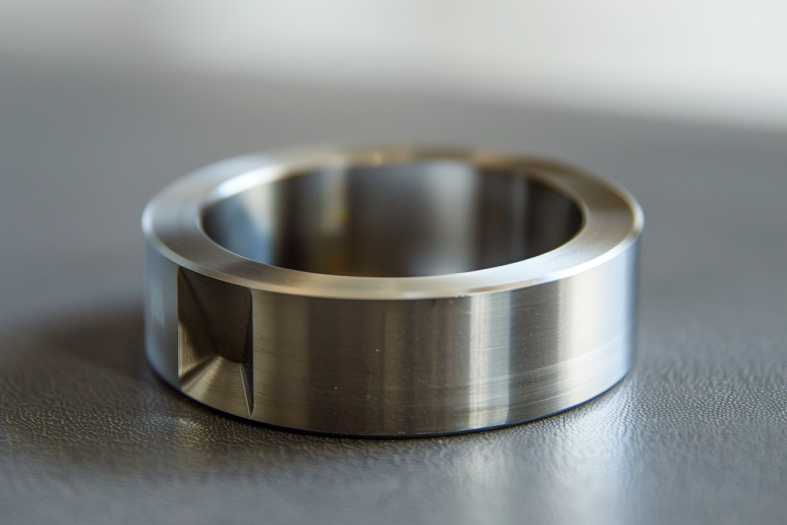

How to Process Tungsten
Processing tungsten is challenging due to its high hardness, density, and brittleness. It requires high-rigidity machines, ultra-hard tools like PCD or CBN, and efficient cooling systems to manage heat and tool wear. Cutting speeds should stay below 20 m/min, with low feed rates to avoid cracking. Industries like aerospace and medical rely on tungsten for its high-temperature performance and precision. Success comes from experience, careful parameter tuning, and advanced tools to ensure quality and cost-efficiency.
Material Properties
Material Composition
Tungsten is a transition metal with extremely high purity, typically consisting of over 99% tungsten (W). Depending on the application, small amounts of molybdenum, copper, or nickel may be added to enhance performance.
Physical Properties
- Density: 19.3 g/cm³, making it the densest metal used in manufacturing.
- Melting Point: 3422°C, the highest of all metals.
- Hardness: Extremely hard, with a Brinell hardness exceeding 200 HB.
- Thermal Conductivity: Low thermal conductivity concentrates heat during machining.
Chemical Properties
- Corrosion Resistance: Exceptional resistance to acidic and alkaline corrosion.
- Oxidation Resistance: Prone to oxidation in high-temperature environments, requiring special protection.
- Thermal Stability: Retains superior mechanical properties even under extreme heat.
Machining Challenges and Difficulties
Machining Difficulty
- High Hardness: Tungsten’s hardness makes cutting difficult and causes severe tool wear.
- Brittleness: Despite its hardness, tungsten’s brittleness can lead to cracking or chipping during machining.
- Low Cutting Efficiency: Low thermal conductivity concentrates heat in the cutting zone, increasing machining challenges.
Equipment Requirements
- High-Rigidity Machines: Required to reduce vibration and ensure high-quality machining.
- Specialized Tools: Ultra-hard tools such as PCD or CBN are essential for handling tungsten’s hardness.
- Cooling Systems: Efficient cooling systems are necessary to manage heat buildup and minimize tool damage.
Machining Parameters
- Cutting Speed: Recommended to stay below 20 m/min to control tool wear.
- Feed Rate: Set at a low value, typically 0.05-0.15 mm/rev.
- Cooling Method: Use abundant coolant sprayed directly at the cutting zone to prevent thermal cracking.
Applications and Uses
Typical Application Scenarios
- Aerospace: Used in rocket nozzles and engine components due to its excellent high-temperature performance.
- Medical Industry: Commonly used in X-ray shielding and radiation protection devices.
- Electrical Industry: Tungsten wires are widely applied in light bulbs and vacuum tubes for their exceptional conductivity.
- Mold Manufacturing: Ideal for high-wear and high-precision mold components.
Customer Needs
Customers often require tungsten parts with extremely high dimensional accuracy and smooth surface finishes, ensuring reliable performance in extreme conditions.
Cost and Efficiency Analysis
Machining Costs
- Tooling Costs: High due to significant tool wear during tungsten machining.
- Equipment Costs: High-rigidity machines and cooling systems increase fixed costs.
- Time Costs: Low cutting speeds extend machining cycles.
Machining Efficiency
- Low Efficiency Causes: Tungsten’s hardness and brittleness limit machining speed.
- Optimization Measures: Selecting suitable tool materials and improving cooling methods can enhance efficiency.
Cost-Saving Methods
- Use ultra-hard tools to extend tool life and reduce replacement frequency.
- Employ multi-station machining techniques to minimize setups and machining time.
- Optimize coolant formulations to improve heat dissipation.
Typical Case Studies and Solutions
Successful Case
A medical equipment company required high-precision tungsten parts for radiation shielding. By utilizing PCD tools and high-efficiency coolant, the surface roughness was controlled to within Ra 0.8, reducing tool replacements and improving production efficiency.
Innovative Technologies
- Laser-Assisted Machining: Locally heats tungsten to reduce hardness and improve cutting efficiency.
- Electrical Discharge Machining (EDM): Suitable for complex shapes and small components, avoiding cracks common in traditional cutting processes.
Results Demonstrated
Process optimization increased production efficiency by 30%, doubled tool life, and met customer demands for precision and surface quality.
Machining Recommendations and Professional Advice
Tool Selection
- Use ultra-hard tools such as PCD or CBN to handle tungsten’s hardness.
- For specific requirements, ceramic tools can be utilized to enhance wear resistance.
Parameter Optimization
- Keep cutting speeds at 15-20 m/min to balance efficiency and tool life.
- Maintain low feed rates to reduce cutting forces and protect the workpiece.
- Employ high-efficiency coolants to dissipate heat effectively in the cutting zone.
Customer Tips
When machining tungsten, select experienced service providers capable of ensuring high-quality results while optimizing costs. For specific requirements, collaborate with the provider to design a tailored machining process.
How to Process Tool Steel
Processing tool steel is challenging due to its high hardness and wear resistance. It requires high-rigidity machines, coated carbide or PCBN tools, and effective cooling systems to manage heat and tool wear. Cutting speeds should be 20-50 m/min, with feed rates of 0.1-0.3 mm/rev for stable machining. Tool steel is widely used in molds, cutting tools, and aerospace components, demanding high precision and surface quality. Success depends on using the right tools, optimized parameters, and experienced service providers.
Material Properties
Material Composition
Tool steel is primarily composed of iron, carbon, and alloying elements such as tungsten, chromium, vanadium, and molybdenum. These elements give tool steel its high hardness, strength, and wear resistance. Depending on the application, it can be categorized into cold-work tool steel, hot-work tool steel, and high-speed tool steel.
Physical Properties
- Hardness: Tool steel is extremely hard, typically exceeding HRC 60, suitable for high-strength cutting tools and molds.
- Toughness: Maintains a degree of toughness despite high hardness, enabling it to withstand significant impact forces.
- Wear Resistance: Excellent wear resistance makes it ideal for high-friction, high-load applications.
- Thermal Conductivity: Moderate to low thermal conductivity, leading to heat concentration during machining.
Chemical Properties
- Corrosion Resistance: Certain grades, particularly those with high chromium content, offer some corrosion resistance.
- Thermal Stability: Retains hardness and shape at high temperatures, suitable for heat-intensive applications.
- Oxidation Resistance: Strong resistance to oxidation in high-temperature environments.
Machining Challenges and Difficulties
Machining Difficulty
- High Hardness: Requires advanced tooling to prevent rapid wear and breakage.
- High Cutting Forces: Generates significant cutting resistance, demanding rigid equipment.
- Surface Quality Requirements: Tool steel for molds often requires extremely high surface finishes.
Equipment Requirements
- High-Rigidity Machines: Essential for minimizing vibration and maintaining precision.
- High-Performance Tools: Use coated carbide or ultra-hard tools like PCBN or ceramic for efficient machining.
- Cooling Systems: Effective cooling systems to lower temperatures and extend tool life.
Machining Parameters
- Cutting Speed: Maintain speeds between 20-50 m/min, adjusting based on material and tooling.
- Feed Rate: Recommended between 0.1-0.3 mm/rev for stable cutting.
- Cooling Method: Use emulsion or high-pressure coolant to remove heat and improve lubrication.
Applications and Uses
Typical Application Scenarios
- Mold Manufacturing: Used for high-precision molds, including stamping, plastic injection, and die-casting molds.
- Mechanical Engineering: Suitable for high-hardness components like cutting tools, gauges, and fixtures.
- Automotive Industry: Applied in producing gears, bearing seats, and other wear-resistant parts.
- Aerospace: Used for high-strength cutting tools and wear-resistant components.
Customer Needs
Customers typically demand:
- High Precision: Ensures dimensions meet design specifications.
- High Surface Finish: Necessary for molds and high-performance cutting tools.
- Long Lifespan: Ensures durability in high-stress environments.
Cost and Efficiency Analysis
Machining Costs
- Tooling Costs: High hardness results in rapid tool wear, increasing replacement frequency.
- Equipment Costs: Requires advanced machines and cooling systems, raising fixed costs.
- Time Costs: Slower cutting speeds extend machining cycles.
Machining Efficiency
- Low Efficiency Causes: High hardness and heat concentration limit cutting speeds.
- Optimization Measures: Proper tool selection and parameter adjustments improve efficiency.
Cost-Saving Methods
- Use coated carbide tools to extend tool life.
- Employ precision cooling systems to manage heat and improve efficiency.
- Utilize different tools and parameters for roughing and finishing to reduce overall costs.
Typical Case Studies and Solutions
Successful Case
A customer required a batch of high-hardness stamping molds made from D2 cold-work tool steel. By using TiAlN-coated carbide tools and a high-pressure cooling system, machining efficiency improved by 30%, and surface roughness was controlled within Ra 0.4, meeting the high-quality requirements for molds.
Innovative Technologies
- High-Frequency Vibration-Assisted Machining: Reduces cutting forces and extends tool life.
- Composite Carbide Tools: Effective for machining high-hardness tool steel, reducing tool breakage risks.
Results Demonstrated
Optimized machining increased efficiency by 25%, reduced tool replacement frequency by 50%, and achieved excellent surface quality and dimensional accuracy.
Machining Recommendations and Professional Advice
Tool Selection
- Use coated carbide tools (e.g., TiAlN-coated) for high-speed cutting.
- For extremely hard materials, opt for PCBN or ceramic tools to extend tool life.
Parameter Optimization
- Maintain cutting speeds between 20-50 m/min, adjusting based on tool performance and machining requirements.
- Feed rates between 0.1-0.3 mm/rev ensure stable machining.
- Use emulsion or high-pressure coolant to reduce cutting temperatures and improve lubrication.
Customer Tips
When machining tool steel, choose experienced service providers capable of delivering high precision and surface quality while optimizing efficiency and costs. For specific requirements, communicate with the provider to design a tailored machining process.
How to Process Haynes 188
Processing Haynes 188 is challenging due to its high hardness, strength, and poor thermal conductivity. It requires high-rigidity machines, heat-resistant tools like TiAlN-coated carbide or ceramic, and high-pressure cooling systems. Cutting speeds should be kept at 10-20 m/min with feed rates of 0.05-0.2 mm/rev. Used in aerospace, power generation, and chemical industries, precision and surface quality are key. Success depends on optimized parameters, advanced tools, and experienced service providers to ensure efficiency and cost control.
Material Properties
Material Composition
Haynes 188 is a cobalt-based alloy primarily composed of cobalt (Co), nickel (Ni), chromium (Cr), and tungsten (W). It also contains small amounts of carbon (C), molybdenum (Mo), and rare earth elements such as lanthanum (La). These elements provide exceptional high-temperature strength and corrosion resistance.
Physical Properties
- Density: 8.9 g/cm³, relatively dense.
- Melting Point: Approximately 1320°C, suitable for extreme high-temperature environments.
- Hardness: High hardness makes it perform well under high stress conditions.
- Thermal Conductivity: Low thermal conductivity causes cutting heat to accumulate.
Chemical Properties
- Corrosion Resistance: Outstanding resistance in both oxidative and reductive environments.
- Oxidation Resistance: Excellent performance at high temperatures, maintaining mechanical properties over time.
- Fatigue Resistance: Exceptional resistance to fatigue under cyclic temperature conditions.
Machining Challenges and Difficulties
Machining Difficulty
- High Hardness and Strength: Generates large cutting forces, causing significant tool wear and making machining difficult.
- Heat Accumulation: Poor thermal conductivity leads to heat concentration in the cutting zone, accelerating tool wear.
- Surface Quality Control: High temperatures during cutting may cause surface tearing and thermal cracks.
Equipment Requirements
- High-Rigidity Machines: Reduces vibration, ensuring stability and precision during machining.
- High-Efficiency Cooling Systems: High-pressure cooling systems are essential to reduce cutting zone temperatures.
- Specialized Tools: Heat-resistant coated tools, such as TiAlN-coated carbide tools or ceramic tools, are recommended.
Machining Parameters
- Cutting Speed: Recommended to be kept between 10-20 m/min to minimize tool failure.
- Feed Rate: Maintain between 0.05-0.2 mm/rev for stable cutting.
- Cooling Method: Use high-pressure coolant directly on the cutting zone to ensure effective heat dissipation and lubrication.
Applications and Uses
Typical Application Scenarios
- Aerospace: Used for manufacturing gas turbine blades, combustion chamber liners, and nozzle components due to its strength and corrosion resistance at high temperatures.
- Power Generation: Widely applied in gas turbines and high-temperature boilers.
- Chemical Industry: Suitable for equipment requiring high corrosion resistance, such as heat exchangers and reactors.
Customer Needs
Customers typically require Haynes 188 parts with:
- High precision and stability to meet complex shapes and stringent dimensional tolerances.
- Excellent surface quality to ensure reliable performance under extreme conditions.
- Short production cycles and controllable costs.
Cost and Efficiency Analysis
Machining Costs
- Tooling Costs: Frequent tool replacements are necessary due to the high hardness of the material.
- Equipment Costs: Significant investment in high-rigidity machines and cooling systems.
- Time Costs: Slow cutting speeds increase machining time.
Machining Efficiency
- Low Efficiency Causes: Heat management and high hardness restrict cutting speeds.
- Optimization Measures: Proper tool selection and cooling methods can improve efficiency.
Cost-Saving Methods
- Use multi-axis machines to reduce operation time.
- Adopt high-wear-resistant coated tools to extend tool life.
- Optimize coolant formulations and spray angles for better cooling and lubrication.
Typical Case Studies and Solutions
Successful Case
An aerospace company needed to machine a batch of Haynes 188 nozzle components. By using ceramic tools and a high-pressure cooling system with optimized cutting parameters, they achieved a surface roughness of Ra 0.6 while extending tool life by 40%.
Innovative Technologies
- Laser-Assisted Machining: Locally heats the material to reduce cutting forces and improve efficiency.
- Electrical Discharge Machining (EDM): Ideal for precision machining of complex shapes, avoiding traditional heat-related issues.
Results Demonstrated
Optimization improved machining efficiency by 30%, ensured part consistency and quality, and reduced overall costs by 15%.
Machining Recommendations and Professional Advice
Tool Selection
- Use TiAlN or AlCrN-coated carbide tools for high-temperature cutting.
- For high-strength machining, ceramic or CBN tools offer superior performance.
Parameter Optimization
- Keep cutting speeds between 10-20 m/min to ensure tool longevity.
- Set feed rates at 0.05-0.2 mm/rev to balance cutting forces and efficiency.
- Use high-efficiency emulsified coolant with high-pressure spray methods.
Customer Tips
Machining Haynes 188 requires advanced technology and skilled operators. Choose experienced service providers with high-end equipment. Collaborate with them to develop specific machining strategies to optimize costs while ensuring high-quality results.
How to Process Hastelloy
Processing Hastelloy is challenging due to its high hardness, strength, and low thermal conductivity. It requires high-rigidity machines, heat-resistant tools like TiAlN-coated carbide or ceramic tools, and high-pressure cooling systems. Cutting speeds should stay at 15-25 m/min, with feed rates of 0.05-0.2 mm/rev. Commonly used in chemical, aerospace, and marine industries, Hastelloy parts demand precision and superior surface quality. Success relies on optimized parameters, advanced tools, and experienced service providers.
Material Properties
Material Composition
Hastelloy is a nickel-based alloy primarily composed of nickel (Ni), molybdenum (Mo), chromium (Cr), iron (Fe), and cobalt (Co). Common grades include C-22 and C-276, with specific compositions providing exceptional corrosion resistance.
Physical Properties
- Density: 8.6-8.9 g/cm³, relatively high density.
- Melting Point: Approximately 1325°C, suitable for high-temperature environments.
- Hardness: High hardness requires advanced cutting tools.
- Thermal Conductivity: Low thermal conductivity causes heat concentration during machining.
Chemical Properties
- Corrosion Resistance: Outstanding resistance to strong acids, oxidizers, and reductants, especially in acidic environments.
- Oxidation Resistance: Excellent performance under high temperatures.
- Chemical Stability: Stable in extreme environments, with minimal chemical reactions.
Machining Challenges and Difficulties
Machining Difficulty
- High Hardness and Strength: Causes rapid tool wear and challenges during cutting.
- Low Thermal Conductivity: Heat concentrates in the cutting zone, leading to tool overheating.
- Surface Quality: Cutting can result in burrs or surface damage if not managed properly.
Equipment Requirements
- High-Rigidity Machines: Essential for stable and precise machining.
- High-Efficiency Cooling Systems: High-pressure coolant systems are crucial for reducing heat.
- Specialized Tools: Heat-resistant coated tools like TiAlN-coated carbide or ceramic tools are recommended.
Machining Parameters
- Cutting Speed: Recommended to stay between 15-25 m/min to reduce tool wear.
- Feed Rate: Suggested range is 0.05-0.2 mm/rev for stable machining.
- Cooling Method: Use high-pressure coolant directly on the cutting zone for effective cooling and lubrication.
Applications and Uses
Typical Application Scenarios
- Chemical Industry: Widely used for corrosion-resistant equipment such as reactors, pipes, and heat exchangers.
- Aerospace: Ideal for turbine blades and engine components in high-temperature, corrosive environments.
- Marine Engineering: Suitable for underwater equipment and key components in desalination systems.
- Pharmaceutical Industry: Used in high-cleanliness and corrosion-resistant equipment like production machinery and storage vessels.
Customer Needs
Customers often demand:
- High Precision: To ensure parts fit complex systems accurately.
- Superior Surface Finish: To minimize corrosion and improve performance.
- Long-Term Reliability: Parts must operate under extreme conditions for extended periods.
Cost and Efficiency Analysis
Machining Costs
- Tooling Costs: High due to significant wear during Hastelloy machining.
- Equipment Costs: Requires high-rigidity machines and efficient cooling systems, increasing initial investment.
- Time Costs: Limited cutting speeds result in longer machining cycles.
Machining Efficiency
- Challenges: Hardness and heat management limit machining speed.
- Optimization Measures: Proper tool selection and optimized machining parameters can enhance efficiency.
Cost-Saving Methods
- Use high-wear-resistant coated tools (e.g., TiAlN) to extend tool life.
- Employ multi-functional machines to reduce operational time.
- Improve coolant formulations and spray methods for better heat dissipation.
Typical Case Studies and Solutions
Successful Case
A chemical equipment manufacturer required Hastelloy heat exchanger pipe fittings. By using CBN tools and high-efficiency cooling systems with optimized cutting speeds and feed rates, machining time was reduced by 20%, and surface roughness was controlled to within Ra 0.5.
Innovative Technologies
- High-Frequency Vibration-Assisted Machining: Reduces cutting forces and improves stability.
- Electrical Discharge Machining (EDM): Suitable for precision machining of complex shapes, avoiding traditional cutting heat issues.
Results Demonstrated
Optimization improved machining efficiency by 30%, extended tool life by 50%, and delivered parts meeting all quality requirements.
Machining Recommendations and Professional Advice
Tool Selection
- Use TiAlN-coated carbide tools for standard cutting operations.
- For high-precision and high-hardness machining, ceramic or CBN tools are recommended.
Parameter Optimization
- Cutting Speed: Maintain between 15-25 m/min to balance tool longevity and machining stability.
- Feed Rate: Set at 0.05-0.2 mm/rev to ensure proper cutting forces.
- Cooling Method: Utilize high-pressure coolant directed at the cutting zone to manage heat effectively.
Customer Tips
Machining Hastelloy requires advanced technology and experienced operators. Partnering with skilled service providers ensures high-quality results while optimizing costs. Discuss specific requirements with the provider to develop efficient machining strategies tailored to your needs.
How to Process Ceramics
Processing ceramics is challenging due to their hardness, brittleness, and low thermal conductivity. It requires high-rigidity CNC machines, diamond or CBN tools, and advanced grinding machines for precision. Cutting speeds are kept low (100-200 m/min) with minimal feed rates (0.01-0.1 mm/rev) to prevent cracking. Water-based coolants are essential for heat management. Ceramics are widely used in aerospace, electronics, medical, and automotive industries for their durability and resistance. Success depends on advanced tools, optimized parameters, and experienced service providers.
Material Properties
Material Composition
Ceramics are primarily composed of non-metallic and inorganic materials such as aluminum oxide (Al₂O₃), silicon carbide (SiC), zirconia (ZrO₂), and silicon nitride (Si₃N₄). Depending on the application, they may also include minor additives to enhance specific properties.
Physical Properties
- Hardness: Ceramics are extremely hard, often exceeding 8 on the Mohs scale, making them highly wear-resistant.
- Brittleness: Despite their hardness, ceramics are brittle and prone to cracking under stress.
- Thermal Stability: They have excellent resistance to high temperatures, often exceeding 1000°C.
- Low Thermal Conductivity: Ceramics are poor conductors of heat, which can pose challenges during machining.
Chemical Properties
- Corrosion Resistance: Ceramics exhibit high resistance to chemical corrosion in aggressive environments.
- Inertness: They are chemically stable and do not react easily with most substances.
- Oxidation Resistance: Ceramics maintain their integrity even under oxidative conditions.
Machining Challenges and Difficulties
Machining Difficulty
- High Hardness: Makes ceramics difficult to machine using conventional methods, leading to rapid tool wear.
- Brittleness: Requires careful handling to avoid chipping or cracking.
- Surface Quality: Achieving high surface finish and precision can be particularly challenging due to the material's nature.
Equipment Requirements
- High-Rigidity Machines: CNC machines with high rigidity are necessary to minimize vibration and improve accuracy.
- Specialized Tools: Diamond tools or cubic boron nitride (CBN) tools are essential for cutting ceramics efficiently.
- Advanced Grinding Machines: Ultra-precision grinding machines are often used for ceramics to achieve the desired finish.
Machining Parameters
- Cutting Speed: Typically low, around 100-200 m/min, depending on the type of ceramic.
- Feed Rate: Very low, typically 0.01-0.1 mm/rev, to reduce stress on the material.
- Coolant: Abrasive machining or grinding often requires water-based coolant to minimize heat generation and remove debris.
Applications and Uses
Typical Application Scenarios
- Aerospace: High-temperature engine components and thermal insulation parts.
- Electronics: Insulators, semiconductors, and piezoelectric devices.
- Medical: Dental implants, artificial joints, and surgical tools due to biocompatibility.
- Automotive: Brake pads, spark plug insulators, and heat shields.
Customer Needs
Customers often demand:
- High Precision: Ceramics used in high-tech industries require tight tolerances.
- Excellent Surface Finish: Ensures durability and performance in critical applications.
- Custom Shapes: Complex geometries tailored to specific use cases.
Cost and Efficiency Analysis
Machining Costs
- Tooling Costs: High due to the need for diamond or CBN tools.
- Machine Costs: Specialized equipment increases capital investment.
- Time Costs: Low machining speeds lead to longer production cycles.
Machining Efficiency
- Challenges: Low efficiency due to slow machining speeds and tool wear.
- Optimizations: Innovative techniques such as laser-assisted machining or EDM improve efficiency.
Cost-Saving Methods
- Use multi-functional tools to reduce setup changes.
- Optimize toolpath strategies to minimize machining time.
- Implement advanced cooling systems to reduce tool wear.
Typical Case Studies and Solutions
Successful Case
A manufacturer required high-precision ceramic parts for aerospace turbine blades. By using diamond grinding tools combined with ultrasonic machining, they achieved surface roughness below Ra 0.4 μm and dimensional tolerances within ±0.005 mm, meeting aerospace standards.
Innovative Technologies
- Ultrasonic Machining: Reduces cutting forces and minimizes the risk of cracks.
- Laser-Assisted Machining: Heats the ceramic locally to soften the material and reduce tool wear.
- EDM: For intricate designs, EDM provides high precision without physical contact.
Results Demonstrated
After optimizing machining parameters and adopting advanced technologies, production time decreased by 25%, tool life increased by 30%, and parts met all stringent customer requirements.
Machining Recommendations and Professional Advice
Tool Selection
- Use diamond-coated or CBN tools for cutting and grinding ceramics.
- For high-precision work, opt for specialized grinding wheels with fine abrasives.
Parameter Optimization
- Maintain low cutting speeds and feed rates to reduce stress on the ceramic material.
- Utilize water-based coolants to minimize thermal damage during grinding.
Customer Tips
Machining ceramics requires advanced techniques and equipment. Partnering with experienced service providers ensures precision, quality, and cost-efficiency. Communicating specific requirements and tolerances upfront can lead to better results and optimized costs.

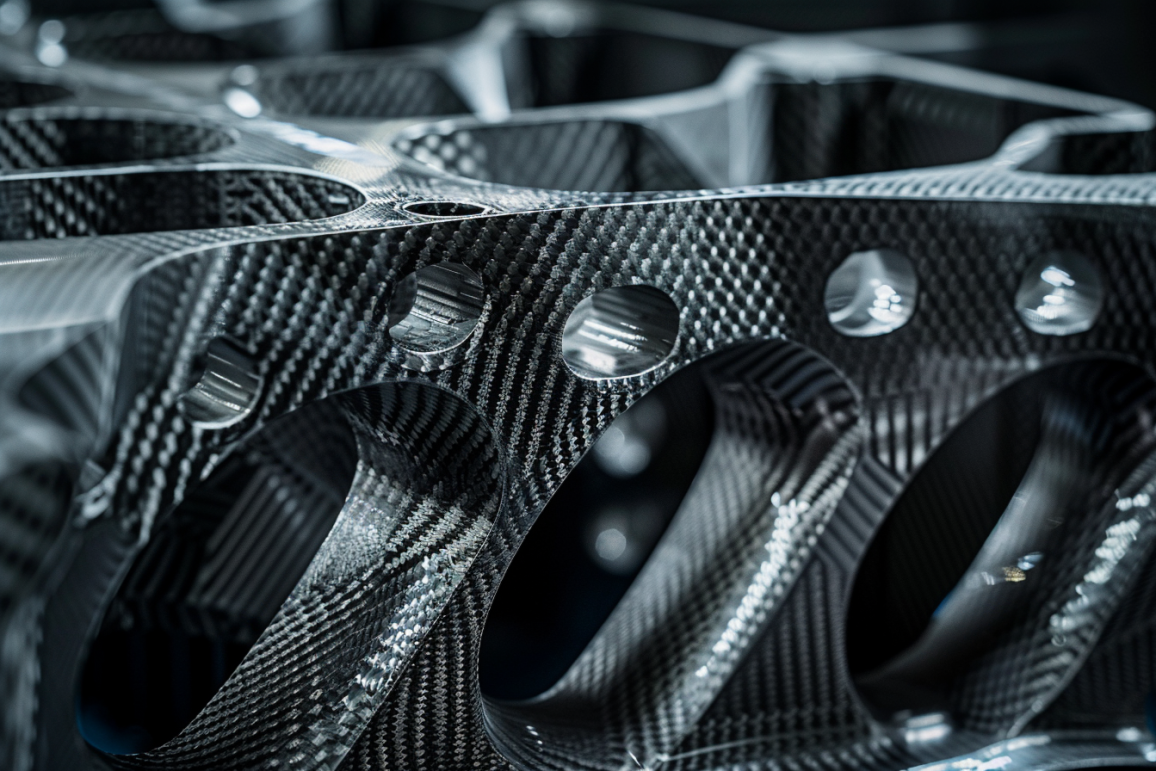

How to Process CFRP (Carbon Fiber Reinforced Plastic)
Processing CFRP is challenging due to its abrasive carbon fibers, risk of delamination, and dust generation. High-speed CNC machines, PCD or carbide tools, and effective dust extraction are essential. Cutting speeds of 100-200 m/min and feed rates of 0.05-0.3 mm/rev balance precision and tool life. CFRP is widely used in aerospace, automotive, and sports industries, requiring smooth edges and custom shapes. Success depends on optimized parameters, advanced tools, and dust management systems.
Material Properties
Material Composition
CFRP consists of carbon fibers embedded in a polymer matrix, typically epoxy resin. The carbon fibers provide high strength and stiffness, while the polymer matrix offers flexibility and resilience. CFRP often has a layered structure, with fibers aligned in specific orientations to optimize mechanical properties.
Physical Properties
- Lightweight: CFRP has a low density, making it ideal for weight-sensitive applications.
- High Strength-to-Weight Ratio: Carbon fibers contribute to exceptional strength without adding significant weight.
- Low Thermal Conductivity: Limits heat dissipation during machining.
- Anisotropic Behavior: Mechanical properties vary depending on fiber orientation.
Chemical Properties
- Corrosion Resistance: CFRP is highly resistant to chemical corrosion, making it suitable for harsh environments.
- Chemical Stability: Resistant to most solvents and chemicals, ensuring durability.
- Non-conductive: In its pure form, CFRP is electrically insulating unless modified with conductive layers.
Machining Challenges and Difficulties
Machining Difficulty
- Layer Delamination: The layered structure of CFRP can lead to delamination during drilling or cutting.
- Tool Wear: The abrasive nature of carbon fibers causes rapid tool wear, especially on conventional tools.
- Surface Fraying: Cutting or drilling often results in fiber pull-out and rough edges.
- Dust Generation: Machining CFRP produces fine dust particles that require effective containment and extraction.
Equipment Requirements
- High-Speed CNC Machines: Capable of maintaining precision and reducing cutting forces.
- Dust Extraction Systems: Essential for removing hazardous CFRP dust generated during machining.
- Specialized Cutting Tools: Use of polycrystalline diamond (PCD) or carbide tools to withstand CFRP's abrasiveness.
Machining Parameters
- Cutting Speed: Typically ranges from 100-200 m/min, depending on the tool material and process.
- Feed Rate: Maintain a moderate feed rate (0.05-0.3 mm/rev) to balance efficiency and minimize delamination.
- Coolant: Generally, dry machining is preferred, but some processes may use air or minimal coolant to reduce dust.
Applications and Uses
Typical Application Scenarios
- Aerospace: CFRP is used for aircraft fuselages, wings, and interior components due to its lightweight and high strength.
- Automotive: Sports cars and electric vehicles use CFRP for structural and aesthetic components.
- Sports Equipment: Tennis rackets, bicycles, and golf clubs benefit from its strength and lightness.
- Wind Energy: Blades for wind turbines are often made from CFRP for efficiency and durability.
Customer Needs
Customers typically require:
- High Precision: Tight tolerances for aerospace or automotive applications.
- Smooth Edges: Minimal fraying or delamination on machined surfaces.
- Custom Shapes: Tailored designs to fit specific engineering requirements.
Cost and Efficiency Analysis
Machining Costs
- Tooling Costs: High due to frequent replacement of tools worn down by carbon fibers.
- Dust Management: Additional costs for dust extraction and containment systems.
- Time Costs: Reduced cutting speeds and careful handling extend machining times.
Machining Efficiency
- Challenges: High tool wear and the risk of delamination lower efficiency.
- Optimizations: Advanced tool materials and optimized parameters can improve throughput.
Cost-Saving Methods
- Use multi-axis machining to reduce repositioning and setup time.
- Invest in high-durability tools such as PCD to extend tool life.
- Implement automated dust collection systems to streamline cleanup.
Typical Case Studies and Solutions
Successful Case
An aerospace manufacturer needed high-precision CFRP parts for aircraft fuselages. By using PCD tooling combined with optimized cutting speeds and feed rates, they achieved a delamination-free finish and reduced tool changes by 40%. Additionally, dust extraction systems ensured compliance with safety standards.
Innovative Technologies
- Ultrasonic-Assisted Machining: Reduces cutting forces and minimizes delamination risk.
- Water Jet Cutting: Uses high-pressure water mixed with abrasives to cut CFRP without thermal damage.
- Laser Cutting: Ideal for precision cutting of complex shapes, though dust control remains critical.
Results Demonstrated
Through process optimization and advanced tools, machining efficiency increased by 30%, part rejection rates decreased significantly, and compliance with quality standards was ensured.
Machining Recommendations and Professional Advice
Tool Selection
- Use polycrystalline diamond (PCD) or carbide tools for their wear resistance and cutting precision.
- For drilling, opt for split-point drills or brad-point drills to minimize delamination.
Parameter Optimization
- Cutting Speed: Maintain within 100-200 m/min to balance tool life and machining quality.
- Feed Rate: Optimize between 0.05-0.3 mm/rev based on part complexity and tool wear.
- Cooling: Employ dry machining with effective dust extraction to maintain safety and reduce contamination.
Customer Tips
Machining CFRP requires specialized equipment and expertise. Collaborating with experienced manufacturers ensures high-quality results and cost-effective solutions. Clearly define tolerance and surface finish requirements to guide the machining process effectively.
Conclusion
Machining hard-to-process materials requires expertise, precision, and the right technology. From titanium alloys to Inconel, tungsten, tool steel, and more, we provide reliable and efficient solutions tailored to your needs. With advanced equipment, proven processes, and a focus on quality, we help you achieve your project goals with confidence.
If you’re looking for a dependable partner to handle your challenging machining requirements, feel free to contact us today. We’re here to discuss your needs and provide a solution that works for you.
FAQ：
1. Is titanium harder to machine than Inconel?
Yes, titanium is generally harder to machine than Inconel. While both materials present challenges, titanium's poor thermal conductivity concentrates heat at the tool tip, causing rapid tool wear. It is also prone to vibration due to its low elastic modulus, making precision machining more difficult. Inconel, though extremely hard and heat-resistant, benefits from slightly better machining strategies due to its less sticky nature compared to titanium.
2. What are the 3 hardest materials?
The three hardest materials to machine are:
- Ceramics: Due to extreme hardness and brittleness.
- Tungsten: High density and hardness make it challenging to cut and prone to tool wear.
- Superalloys (like Inconel and Haynes 188): Due to their high temperature and corrosion resistance, coupled with hardness.
3. What is the most difficult material?
The most difficult material to machine is ceramics, due to their extreme hardness (exceeding 8 on the Mohs scale), brittleness, and tendency to crack under stress. Specialized tools like diamond or CBN are required, and achieving precision is particularly challenging.
4. Is titanium harder to machine than steel?
Yes, titanium is harder to machine than steel. Its lower thermal conductivity leads to heat concentration at the cutting zone, causing tool wear. Additionally, titanium's high strength-to-weight ratio and lower elastic modulus make it more prone to vibration and tool deflection, further complicating machining. In comparison, most steels, even hardened tool steel, are easier to machine with proper tools and parameters.
