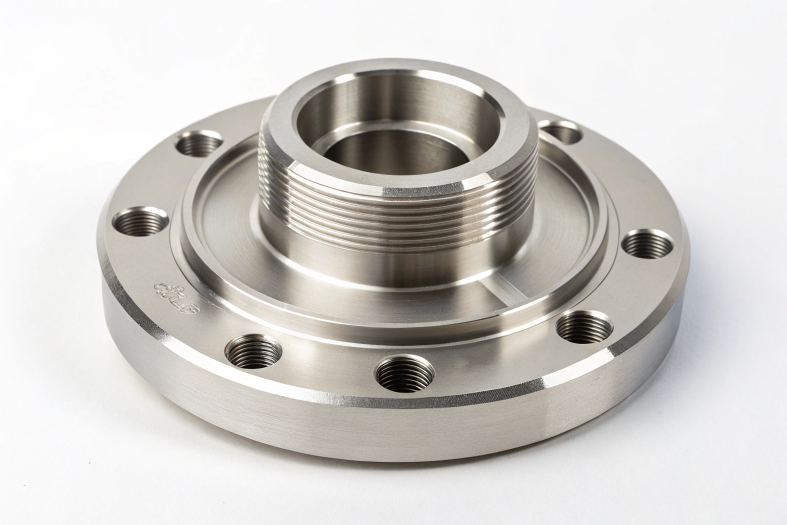

Precision machining is the backbone of various industries like automotive, aerospace, and medical devices. While it delivers high-quality components, one challenge persists: burrs and sharp edges. Removing these imperfections is critical for functionality, safety, and compliance with industry standards.
Direct Answer:
To remove burrs and sharp edges, use methods like manual deburring tools, vibratory finishing, thermal deburring, or electrochemical deburring, depending on material and part geometry.
Introduction
What are burrs and sharp edges?
Burrs are unwanted projections of material formed during machining processes, such as drilling, milling, or turning. Sharp edges, on the other hand, refer to unintentional, dangerous edges left after machining.
Why is their removal important?
- Safety: Prevents injuries during handling.
- Functionality: Ensures proper assembly and operation of parts.
- Compliance: Meets industry standards and customer requirements.
Understanding Burr Formation
Common Causes of Burrs During Machining
Burrs are a common issue in machining and understanding their causes is vital for effective prevention and removal. Here are the primary reasons burrs form during machining:
-
Excessive Tool Wear
Dull or worn tools lose their ability to shear material effectively, leading to deformation instead of a clean cut. This often results in the formation of burrs. Regular inspection and replacement of tools can significantly reduce this problem. -
Incorrect Cutting Parameters
- Low Cutting Speeds: Can cause material to drag, creating rollover burrs.
- Excessive Feed Rates: May tear the material instead of cutting it cleanly, leading to jagged edges.
Optimizing parameters like speed, feed, and depth of cut ensures smoother machining and minimizes burr formation.
-
Material Type and Hardness
The properties of the workpiece material play a crucial role:- Ductile Materials (e.g., Aluminum): Prone to forming rollover burrs due to material bending.
- Brittle Materials (e.g., Cast Iron): More likely to produce breakout burrs when fractures occur during machining.
- Composite Materials: Often generate complex burrs due to their heterogeneous structure.
By addressing these factors, manufacturers can reduce the likelihood of burr formation during machining operations.
Types of Burrs
Understanding the types of burrs is essential for selecting appropriate removal methods. Here are the most common types:
-
Rollover Burrs
- Definition: Material bends over the edge, forming a continuous protrusion.
- Cause: Inadequate cutting action or dull tools.
- Characteristics: Smooth and rounded edges, common in ductile materials.
- Example: Found at the tool exit during drilling or milling.
-
Breakout Burrs
- Definition: Jagged material fractures near the tool exit.
- Cause: High cutting forces in brittle materials or lack of edge support.
- Characteristics: Sharp, irregular edges, often seen in harder materials like steel or titanium.
- Example: Common in milling operations on unsupported sections.
-
Secondary Burrs
- Definition: Residual burrs left after initial removal or created during subsequent machining steps.
- Cause: Ineffective deburring or machining processes.
- Characteristics: Smaller, yet harder to remove; can compromise precision.
- Example: Appears in precision parts requiring multiple machining passes.
By identifying the type of burr present, manufacturers can choose targeted deburring techniques.
Challenges Associated with Sharp Edges
Sharp edges, while less prominent than burrs, pose significant challenges in precision machining. Here’s why they must be addressed:
-
Risk of Part Failure Due to Stress Concentration
Sharp edges act as stress concentrators, increasing the likelihood of crack formation under load. This is particularly problematic in high-performance applications, such as aerospace and automotive components. -
Difficulty in Achieving Consistent Finishes
Sharp edges complicate finishing processes:- Abrasive Polishing: May remove more material than intended, affecting tolerances.
- Coating Adhesion: Uneven coverage can lead to weak spots prone to wear or corrosion.
-
Safety Hazards
- Worker Safety: Sharp edges increase the risk of cuts during handling.
- End-User Safety: Unfinished parts may pose risks to the product's users.
-
Impact on Assembly and Functionality
Sharp edges can interfere with part assembly, causing poor fits or damage to adjacent components, especially in high-precision systems.
Importance of Deburring and Edge Finishing
Deburring and edge finishing are critical steps in precision machining, as they ensure the functionality, safety, and durability of machined components. Here's an in-depth look at their importance:
Functional Benefits
-
Improved Fit and Finish
- Assembly Precision: Removing burrs ensures that parts fit together seamlessly, preventing issues like misalignment or interference. This is particularly crucial in applications with tight tolerances, such as automotive or aerospace components.
- Aesthetic Appeal: A burr-free surface enhances the visual quality of the part, which is essential for consumer-facing products or premium-grade equipment.
-
Enhanced Operational Safety
- Worker Safety: Burrs and sharp edges pose risks of injury during handling, assembly, or maintenance. Proper deburring reduces these hazards.
- End-User Safety: Components with well-finished edges prevent accidents, especially in medical devices, surgical tools, or household products.
Compliance with Industry Standards
-
Aerospace Industry
- Standards like AS9100 require stringent quality control to ensure safety and reliability. Deburring is essential for components subjected to high stress, such as turbine blades or landing gear, as burrs can lead to stress concentration and fatigue failure.
- FAA Regulations: Many aerospace parts must be free from burrs to pass rigorous inspections and meet Federal Aviation Administration (FAA) safety standards.
-
Medical Industry
- Biocompatibility: Burrs can harbor bacteria or contaminants, compromising the sterility of surgical tools or implants. Deburring ensures smooth, clean surfaces for optimal biocompatibility.
- Regulatory Compliance: Standards like ISO 13485 emphasize surface quality to guarantee patient safety and product efficacy. Burr-free and polished edges are non-negotiable in medical manufacturing.
-
Automotive Industry
- Deburring is critical to achieving compliance with IATF 16949 standards, which demand defect-free components for reliable vehicle performance. Sharp edges or burrs on engine parts, for instance, can disrupt fluid dynamics or lead to mechanical failures.
Impact on Part Longevity
-
Reduced Wear and Tear
- Burrs and sharp edges can cause localized stress points, leading to fatigue cracks and premature part failure. Edge finishing distributes stress evenly across the surface, enhancing durability.
- Components like gears, bearings, and shafts benefit from burr-free surfaces, reducing friction and extending their operational life.
-
Prevention of Corrosion
- Burrs and sharp edges can create crevices where moisture or chemicals accumulate, accelerating corrosion. Finishing processes eliminate these vulnerabilities, ensuring long-term material integrity.
-
Enhanced Surface Coating Performance
- Surface treatments like anodizing, plating, or powder coating adhere better to smooth, burr-free surfaces. This ensures uniform coverage and increases resistance to environmental factors, such as heat or oxidation.
Real-World Examples of Importance
- Aerospace: A turbine blade with burrs can experience stress fractures during operation, leading to catastrophic failure. Deburring improves fatigue resistance and ensures compliance with safety standards.
- Medical Devices: A surgical scalpel with burrs may cause unintended tissue damage or retain contaminants, compromising patient outcomes. Proper edge finishing ensures precise and sterile performance.
- Automotive: A burr on a fuel injector can disrupt fuel flow, reducing engine efficiency. Deburring ensures optimal functionality and compliance with emission regulations.
Methods for Removing Burrs
Removing burrs is a critical step in precision machining, ensuring the functionality, safety, and quality of components. Below is an in-depth analysis of the most common methods for deburring, along with their applications, advantages, and limitations.
Manual Techniques
-
Deburring Tools
- Overview: Handheld tools with replaceable blades designed to scrape away burrs.
- Applications: Ideal for low-volume operations, prototypes, or parts with simple geometries.
- Advantages:
- Cost-effective for small-scale use.
- Provides high precision and control over the deburring process.
- Limitations:
- Labor-intensive and time-consuming.
- Inconsistent results across high volumes due to human error.
-
Sanding and Abrasive Pads
- Overview: Use of abrasive materials like sandpaper or pads to smooth edges and remove light burrs.
- Applications: Suitable for soft materials (e.g., aluminum) or surface-level burrs.
- Advantages:
- Simple and inexpensive.
- Effective for fine finishing tasks.
- Limitations:
- Limited to light burrs and shallow edges.
- May not achieve consistent results on complex geometries.
Mechanical Methods
-
Tumbling and Vibratory Finishing
- Overview: Parts are placed in a tumbling barrel or vibratory bowl with abrasive media that polishes and removes burrs.
- Applications: Best for small, mass-produced parts like fasteners or brackets.
- Advantages:
- Handles bulk quantities efficiently.
- Provides uniform deburring across multiple parts.
- Limitations:
- Not suitable for delicate or complex geometries.
- Abrasive media can cause minor surface damage on softer materials.
-
Brushing and Grinding
- Overview: Brushes with abrasive bristles or grinding wheels are used to remove burrs mechanically.
- Applications: Suitable for parts with intricate geometries or hard-to-reach areas.
- Advantages:
- Versatile for various materials and shapes.
- Provides consistent results for medium- to high-volume production.
- Limitations:
- Requires skilled operators for optimal results.
- May produce secondary burrs if not performed correctly.
Thermal Deburring
-
Process Overview
- A controlled explosion of gas is used to burn away burrs in hard-to-reach areas. The parts are placed in a sealed chamber where a combustible gas mixture is ignited, creating a high-temperature reaction that vaporizes burrs.
-
Applications
- Best for intricate parts with internal burrs, such as valves or hydraulic components.
-
Advantages
- Removes burrs from areas inaccessible by manual or mechanical methods.
- High efficiency for batch processing.
- Leaves no secondary burrs.
-
Limitations
- High setup and operational costs.
- Not suitable for heat-sensitive materials, as the process can cause thermal damage.
Electrochemical Deburring (ECD)
-
How It Works
- Uses anodic dissolution to remove burrs. The part acts as the anode, and a specially shaped cathode directs the process. An electrolyte solution facilitates the controlled removal of material.
-
Applications
- Precision components with tight tolerances, such as gears, medical implants, or aerospace parts.
-
Advantages
- High precision with minimal impact on part dimensions.
- No mechanical stress on the part, making it ideal for delicate components.
- Capable of removing burrs from internal and complex geometries.
-
Limitations
- High initial equipment costs.
- Requires careful handling of electrolyte solutions, which can be corrosive and hazardous.
High-Pressure Water Jet Deburring
-
Process Description
- High-pressure water (up to 50,000 psi) is directed at the part to erode burrs without damaging the material.
-
Applications
- Works well for parts with delicate features or made of soft materials, such as plastics or lightweight metals.
-
Advantages
- Non-abrasive, ensuring no surface damage.
- Environmentally friendly, as it uses water and does not generate additional waste.
- Effective for removing burrs from hard-to-reach areas.
-
Limitations
- High operational costs due to water pressure systems.
- Not suitable for removing large or hard burrs.
Choosing the Right Method
The selection of a deburring method depends on several factors, including:
- Material Properties: Some methods work better for soft materials, while others are suited for hard metals.
- Part Geometry: Intricate designs may require advanced techniques like thermal or electrochemical deburring.
- Production Volume: Manual methods are better for small batches, while mechanical methods excel in high-volume operations.
- Cost and Tolerance Requirements: Precision methods like ECD or thermal deburring are more expensive but provide superior results for critical applications.
Techniques for Edge Finishing
Edge finishing ensures smooth, safe, and functional edges on machined parts, enhancing both aesthetics and performance. Below are the most effective techniques:

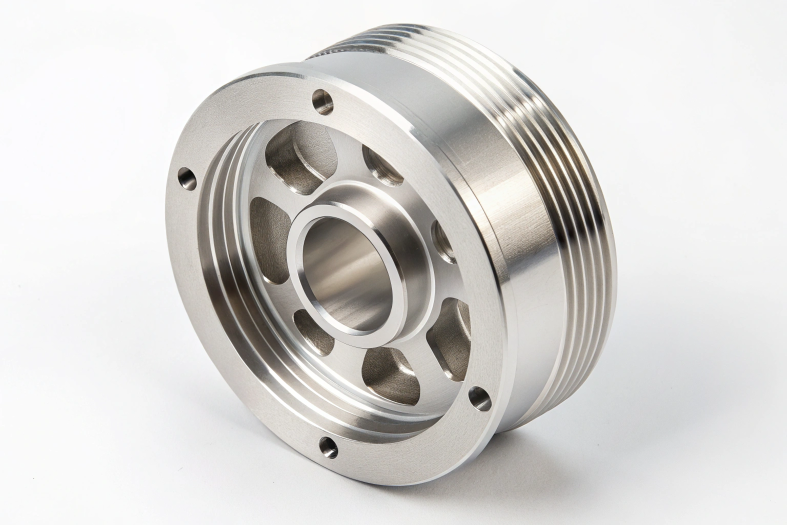

Chamfering and Rounding
- Process: Chamfering involves creating a beveled edge, while rounding adds a smooth, curved finish to sharp edges.
- Applications: Common in aerospace, medical, and automotive industries where sharp edges can cause assembly issues or safety concerns.
- Advantages:
- Reduces stress concentration and improves part durability.
- Enhances aesthetic appeal and safety.
- Considerations: Requires precise control to maintain dimensional accuracy, especially for high-tolerance parts.
CNC Programming
- Process: CNC machines are programmed to perform precise edge finishing during or after the primary machining process.
- Applications: Ideal for parts with repetitive geometries or complex edge profiles.
- Advantages:
- Ensures consistency across high-volume production.
- Reduces manual labor and improves efficiency.
- Limitations: Initial programming requires expertise and may increase setup time.
Laser-Based Methods
- Process: Lasers are used to precisely remove material, creating clean and consistent edges.
- Applications: Suitable for intricate designs or high-value components requiring minimal material removal.
- Advantages:
- Extremely precise with no physical contact, reducing the risk of damage.
- Can be used on heat-sensitive materials.
- Limitations: High cost of equipment and slower throughput compared to mechanical methods.
Factors to Consider When Choosing a Deburring Method
Selecting the right deburring technique involves evaluating multiple factors to achieve optimal results:
Material Type
- Soft Materials (e.g., Aluminum, Plastics): Methods like sanding, brushing, or water jet deburring are effective.
- Hard Materials (e.g., Steel, Titanium): Thermal or electrochemical deburring may be required for efficient and precise results.
Part Geometry
- Simple Shapes: Manual or mechanical methods like tumbling may suffice.
- Complex Shapes: Intricate parts often require advanced techniques like laser deburring or electrochemical processes.
Cost and Production Volume
- Low-Volume Production: Manual deburring or CNC chamfering may be more economical.
- High-Volume Production: Automated methods like vibratory finishing or thermal deburring are better suited for efficiency.
Precision and Tolerance Requirements
- High-tolerance parts, such as aerospace components, may necessitate precise methods like ECD to avoid dimensional inaccuracies.
Common Challenges in Deburring
Despite advancements in deburring technologies, challenges persist, particularly in high-precision industries:
Handling Delicate Parts
- Issue: Fragile parts can be damaged by aggressive deburring methods.
- Solution: Use non-abrasive techniques like water jet deburring or manual methods with soft abrasives.
Dimensional Accuracy
- Issue: Aggressive deburring can remove too much material, compromising tolerances.
- Solution: Opt for precision methods like ECD or laser-based techniques.
Minimizing Secondary Burrs
- Issue: Secondary burrs can form during certain mechanical deburring processes.
- Solution: Implement secondary finishing stages or use advanced techniques like thermal deburring.
Quality Control and Inspection
Ensuring consistent, burr-free parts requires robust quality control measures:
Techniques for Inspection
- Visual Checks: Quick and cost-effective but less reliable for micro-burrs.
- Microscopy: Provides detailed views of edges and surfaces.
- Edge Measurement Tools: Instruments like profilometers ensure precise evaluation of edge finishes.
Maintaining Consistency
- Automation: Automated inspection systems with cameras and sensors ensure consistency in high-volume production.
- Standards Compliance: Adherence to industry-specific standards (e.g., AS9100, ISO 13485) ensures quality and safety.
Sustainability in Deburring Processes
Environmental and energy considerations are becoming increasingly important in manufacturing:
Reducing Waste
- Reusable Abrasives: Use media that can be cleaned and reused, reducing material waste.
- Eco-Friendly Processes: Opt for methods like water jet deburring, which generate minimal waste and avoid hazardous chemicals.
Energy Efficiency
- Automation: Automated systems optimize energy use by reducing processing times.
- Optimized Workflows: Sequencing deburring and finishing steps to minimize redundant operations saves energy and resources.
Future Trends in Deburring and Edge Finishing
Advancements in technology are driving significant improvements in deburring processes:
Advanced Automation
- Robotics: Robots equipped with sensors and AI algorithms can adapt to complex geometries, improving efficiency and precision.
- Cobots: Collaborative robots (cobots) work alongside human operators to enhance productivity in smaller-scale operations.
AI Integration
- Process Optimization: AI-powered systems analyze data in real-time to adjust deburring parameters, ensuring consistent results.
- Predictive Maintenance: AI can predict tool wear or system failures, minimizing downtime.
Innovations in Tooling
- Durable Abrasives: Development of longer-lasting, eco-friendly abrasive materials reduces costs and environmental impact.
- Custom Tools: Tools designed for specific part geometries improve efficiency and precision.
Conclusion
The removal of burrs and sharp edges is a fundamental aspect of precision machining, directly impacting the quality, safety, and functionality of manufactured parts. This process is not just a finishing touch; it ensures compliance with industry standards, enhances product performance, and improves user safety.
By understanding the causes of burr formation, the available deburring methods, and the challenges associated with edge finishing, manufacturers can select the most effective solutions tailored to their specific needs. From manual tools for small-scale operations to advanced techniques like electrochemical deburring and laser finishing, each method offers unique benefits suited to different materials, geometries, and production volumes.
Moreover, integrating quality control measures and adopting sustainable practices ensures consistent results while aligning with modern environmental and efficiency goals. As the industry evolves, advancements in automation, AI, and tooling will further streamline deburring processes, providing greater precision and cost-effectiveness.
Ultimately, investing in the right deburring and edge finishing strategies transforms raw components into high-performance parts that meet or exceed customer expectations, prolong product lifespan, and strengthen the manufacturer’s reputation in competitive markets.
FAQ:
How do you remove all sharp edges and burrs?
To remove all sharp edges and burrs, methods like manual deburring (using hand tools or abrasive pads), mechanical finishing (tumbling, brushing, or grinding), or advanced techniques such as thermal deburring and electrochemical deburring (ECD) can be employed. The choice depends on factors like material type, part geometry, and desired precision.
What operation is used to remove burrs and round off sharp edges?
Chamfering and rounding are commonly used to remove burrs and create smooth edges. These operations can be performed using CNC machines for consistent results or manual tools for low-volume or intricate work. Other methods, like laser-based edge finishing and vibratory finishing, are effective for specific applications.
How do you break sharp edges in machining?
Sharp edges in machining are typically broken (rounded or chamfered) through CNC programming, where tools are guided to add small chamfers or fillets to edges. Alternatively, manual deburring tools or abrasives can be used for fine adjustments. Automated methods like brushing or tumbling are ideal for high-volume production.
Which instrument is used to remove burrs along the edge of the sheet?
A deburring tool with a replaceable blade is the most common instrument for removing burrs along sheet edges. For larger sheets, brushing machines or grinding tools are often used to achieve uniform results. For delicate sheets, water jet deburring provides a non-abrasive solution.
