How Many Methods Are There for Machining Inner Holes?

Inner hole machining is a vital process in CNC manufacturing, ensuring precision and functionality in components across industries like automotive, aerospace, and medical devices. However, selecting the right method can often feel overwhelming. With high stakes—precision, cost, and efficiency—it’s essential to understand the available techniques. Without this clarity, manufacturers risk suboptimal results, leading to inefficiencies and increased costs. Mastering these methods, however, ensures accurate and efficient production tailored to any application.

Direct Answer: 8 Common Methods for Machining Inner Holes

1. Drilling: The primary method for initial hole creation.
2. Reaming: Refines hole size and improves surface finish.
3. Boring: Enlarges and enhances pre-existing holes with high precision.
4. Honing: Delivers extremely fine surface finishes and tight tolerances.
5. Broaching: Shapes specific internal features like keyways or splines.
6. Grinding: Achieves high-precision holes with exceptional surface quality.
7. Skiving: Provides high-speed material removal, especially in hardened materials.
8. Deep Hole Machining: Specialized for creating deep, straight holes using methods like gun drilling and BTA drilling.

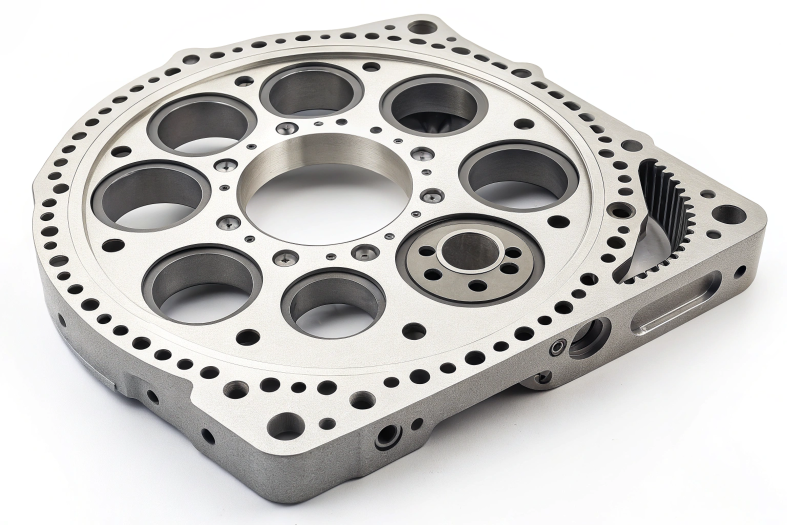

Challenges of Inner Hole Machining

Inner hole machining presents unique challenges compared to external machining due to the constrained environment within the workpiece. These challenges significantly influence the selection of machining methods, tooling, and process parameters, requiring careful planning and execution to achieve the desired results.

Tool Access and Visibility

Restricted space in inner hole machining complicates tool movement and monitoring. The limited access makes it challenging to observe the cutting process directly, hindering real-time adjustments and troubleshooting. This necessitates the use of:

• Specialized tooling such as through-coolant tools.
• Advanced sensor systems to monitor and control the machining process effectively.
  For deep holes, in-process inspection methods like ultrasonic or laser-based systems can help maintain accuracy by providing real-time feedback.

Chip Evacuation

Efficient chip removal is crucial to prevent tool damage and maintain precision. The confined environment of inner hole machining often causes:

• Recutting of chips: Leads to premature tool wear, poor surface finish, and dimensional inaccuracies.
• Chip packing: Obstructs coolant flow, impairs heat dissipation, and increases machining forces.
• Tool breakage: Excessive chip buildup creates high pressure, potentially breaking the tool.

Effective strategies for chip evacuation include:

1. Using high-pressure coolant systems to flush chips out efficiently.
2. Employing optimized tool geometries such as chip breakers and flute designs to direct chip flow.
3. Adjusting cutting parameters (e.g., feed rate and cutting speed) to minimize chip formation issues.

Heat Dissipation

Excessive heat generation during machining can adversely affect both the tool and the workpiece. Heat is particularly difficult to dissipate in inner hole machining due to the enclosed environment, leading to:

• Thermal expansion: Causes dimensional inaccuracies in both the tool and the workpiece.
• Reduced tool life: Accelerated wear due to high temperatures.
• Surface defects: Can induce surface hardening or other metallurgical changes.

Heat dissipation strategies include:

1. Utilizing high-performance cutting fluids with excellent cooling properties.
2. Optimizing cutting parameters to reduce heat generation.
3. Selecting tools with good thermal conductivity, such as those with advanced coatings like titanium nitride or aluminum oxide.

Tool Rigidity and Deflection

Maintaining tool stability is critical for accurate machining. Tool rigidity becomes a significant concern in inner hole machining, especially for deep holes or small diameters, where the extended length of the tool can lead to:

• Tool deflection: Cutting forces cause the tool to bend, leading to dimensional errors, chatter, and degraded surface finish.
• Vibrations (chatter): Deflection amplifies vibrations, reducing both tool life and machining accuracy.

To mitigate tool deflection, manufacturers use the following strategies:

1. Short, rigid tooling: Minimizing tool length while maximizing diameter improves rigidity.
2. Support systems: Employing boring bars with support bearings or guide pads for deep holes.
3. Optimized cutting parameters: Reducing cutting forces through careful selection of feed rate and speed.
4. High-stiffness tool materials: Using materials like carbide or ceramics to resist deflection.
5. Rigid machine setups: Ensuring a stable, vibration-free environment with high-quality tool holders.

Accuracy and Surface Finish Control

Meeting tight tolerances and achieving smooth finishes in inner hole machining is inherently challenging. The constraints of tool access, chip evacuation, heat dissipation, and rigidity contribute to difficulties in controlling accuracy and surface finish.

Key strategies to overcome these challenges include:

1. Precise tooling: Employing tools with sharp cutting edges and accurate geometries.
2. High-precision machine tools: Using CNC machines with minimal backlash and high positioning accuracy.
3. Optimized cutting parameters: Selecting appropriate feed rates, speeds, and depths of cut to balance material removal and surface quality.
4. Specialized machining techniques: Employing methods like reaming, boring, honing, or grinding to achieve specific tolerances and finishes.
5. Effective coolant application: Ensuring consistent coolant flow and pressure for better cooling and chip evacuation.

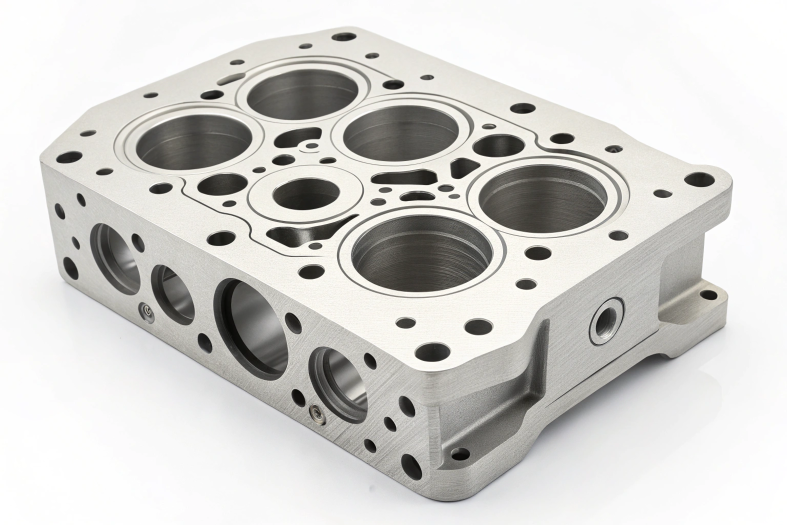

Common Inner Hole Machining Methods

Inner hole machining involves a variety of techniques, each suited for specific applications, materials, and precision requirements. Below is a comprehensive exploration of the most widely used methods, including their tools, processes, and applications.

Drilling

• Description
  Drilling is the most common method for creating cylindrical holes. It employs a rotating cutting tool, such as a twist drill, to remove material along the axis of the tool. The chips generated are evacuated through the drill's flutes. Variants like center drills (for starting holes), spade drills (for larger diameters), and indexable insert drills (for high-speed applications) cater to specific requirements.

• Applications and Limitations
  Drilling is suitable for creating holes across a broad range of materials and diameters. However, its precision is limited for deep holes, where issues such as tool deflection, chip evacuation, and surface roughness arise. Drilled holes often serve as a precursor to more precise machining processes.

• Special Techniques

  1. Deep Hole Drilling: Designed for holes with high depth-to-diameter ratios (>5:1), this method overcomes challenges like chip evacuation and coolant delivery.
  2. Gun Drilling: Utilizes single-fluted drills with high-pressure coolant systems to produce deep, accurate, and straight holes.
  3. Ejector Drilling: Features a double-tube setup for efficient chip removal, ideal for high-volume production of deep holes.

Reaming

• Purpose
  Reaming is a finishing operation that improves hole size, roundness, and surface finish. It removes a small amount of material, ensuring tighter tolerances.

• Tools Used
  Reamers include hand reamers (manual operations), machine reamers (machining tools), and adjustable reamers (fine-tuning hole size).

• Applications
  Reaming is ideal for applications demanding high precision, such as in automotive, aerospace, and die-making industries.

Boring

• Overview
  Boring is a process for enlarging and refining pre-existing holes. Using a single-point cutting tool mounted on a boring bar or head, it achieves high levels of precision in terms of size, straightness, and concentricity.

• Tools and Setups

  • Boring Bars: Rigid tools holding the cutting insert, often supported to minimize deflection.
  • CNC Boring Heads: Allow precise adjustments to the cutting tool's position for enhanced accuracy.

• Applications
  Boring is suited for large-diameter holes, deep bores, and applications requiring tight tolerances, such as engine blocks, gear housings, and hydraulic cylinders.

Honing

• Description
  Honing is a finishing process that uses abrasive stones to refine a hole's surface finish and geometric accuracy. The honing tool rotates and reciprocates simultaneously to remove material evenly.

• Tools and Processes

  • Honing Stones: Made from bonded abrasives, available in various grit sizes.
  • Processes: Include plateau honing for specific surface textures and cross-hatch honing to improve oil retention.

• Applications
  Commonly used in engine cylinders, hydraulic components, and other parts requiring precise fits and smooth finishes.

Broaching

• Overview
  Broaching removes material at high rates to create specific internal shapes. The tool, called a broach, features multiple cutting teeth that progressively enlarge the hole or form the desired profile.

• Tools Used
  Internal broaches are specialized for features like keyways, splines, and internal gears.

• Applications
  Ideal for high-volume production of complex internal shapes, broaching is used in industries like automotive and heavy machinery manufacturing.

Grinding

• Description
  Grinding uses a rotating abrasive wheel to achieve extremely fine surface finishes and tight tolerances. This process is especially effective for internal cylindrical grinding.

• Processes

  • Internal Cylindrical Grinding: Rotates both the workpiece and the grinding wheel, ensuring precise material removal.
  • Creep-Feed Grinding: For high-stock removal with excellent precision.

• Applications
  Common in high-precision manufacturing, grinding is used for components like bearings, gears, and other parts requiring exceptional accuracy and smoothness.

Skiving

• Overview
  Skiving is a high-speed machining technique that efficiently removes material, particularly from hardened surfaces. It is often paired with roller burnishing to enhance surface finish.

• Advantages
  Skiving is faster and more precise than traditional methods for short through-holes and hardened components.

• Applications
  Frequently employed in gear finishing and internal spline creation, skiving is critical in the automotive and industrial machinery sectors.

Deep Hole Machining Techniques

1. Gun Drilling

   • Description: Uses single-fluted drills with high-pressure coolant for chip evacuation. Known for its ability to produce deep, straight, and accurate holes.
   • Applications: Aerospace, medical, and mold-making industries.

2. BTA (Boring Trepanning Association) Drilling

   • Description: Designed for larger-diameter deep holes, this method uses a cutting head with multiple inserts and evacuates chips through the center.
   • Applications: Common in oil and gas, heavy equipment, and industrial machinery manufacturing.

3. Ejector Drilling

   • Description: Employs a dual-tube system for efficient chip evacuation and coolant delivery, suited for high-volume production of deep holes.
   • Applications: Widely used in automotive and defense manufacturing.

Each method offers unique capabilities tailored to specific machining needs. Understanding these techniques allows manufacturers to select the most appropriate process, ensuring precision, efficiency, and cost-effectiveness in inner hole machining.

Comparison of Methods

Key Notes:

1. Accuracy: Tolerance classes (e.g., IT6, IT7) are based on ISO standards for hole accuracy.
2. Surface Finish: Ra values (arithmetical mean roughness) indicate the smoothness of the machined surface.
3. Material Removal Rate: Indicates the volume of material removed per unit of time, varying by method.
4. Cost: Reflects both tooling and operational costs. Methods like broaching and additive manufacturing have high upfront costs but may provide efficiency in specialized applications.
5. Applications: Captures specific use cases for each method, helping identify the best-fit process for a given scenario.

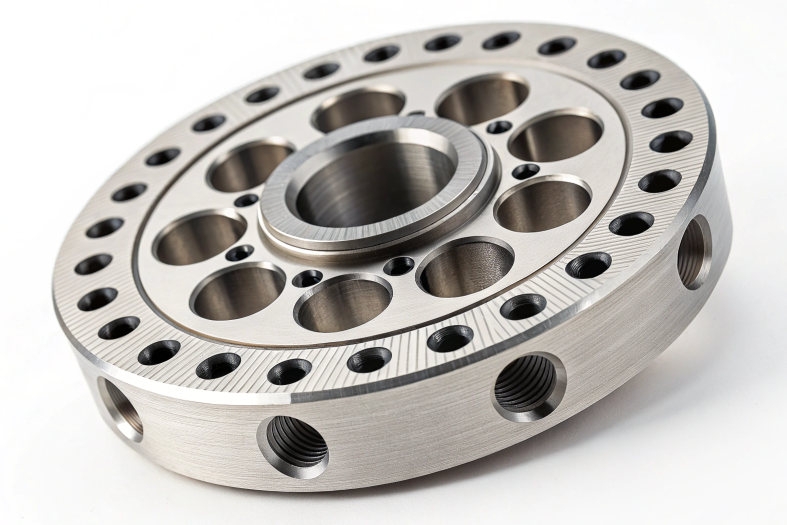

Factors to Consider When Choosing a Method

Selecting the appropriate inner hole machining method is critical for ensuring the desired outcomes in terms of quality, cost, and efficiency. Below are the key factors to consider:

Material of the Workpiece

The properties of the workpiece material directly influence the choice of machining method:

• Hardness: Harder materials, such as hardened steels or superalloys, require robust tooling and slower cutting speeds. Methods like grinding, skiving, or laser machining are often preferred.
• Machinability: Materials with better machinability (e.g., aluminum, brass) allow for faster processing with conventional methods like drilling or reaming, while brittle materials (e.g., ceramics) may require non-contact methods such as laser machining.
• Material Type:
  • Ferrous Metals: Typically require slower speeds and more durable tools due to higher strength.
  • Non-Ferrous Metals: Such as aluminum or copper, allow for faster machining but may need optimized cutting geometries to prevent issues like material adhesion.
  • Composites and Ceramics: Often require specialized approaches like EDM or laser machining due to their unique properties.

Hole Size and Tolerance

• Hole Diameter:
  • Small to Medium Holes: Methods like drilling and reaming are suitable.
  • Large Holes: Boring or broaching provides better control for larger diameters.
• Tolerance:
  • General Applications: Drilling or broaching can achieve moderate tolerances (e.g., IT7-IT9).
  • High-Precision Applications: Methods like honing or grinding are required for tight tolerances (e.g., IT4-IT6).

Surface Finish

• Roughness Requirements:
  • Applications such as hydraulic cylinders or bearing seats require smooth finishes, achievable through honing or grinding.
  • General-purpose holes may tolerate rougher finishes produced by drilling or broaching.
• Achievable Surface Finish:
  • Drilling/Broaching: Produces moderate finishes (Ra 3.2-12.5 µm).
  • Reaming: Improves to Ra 0.8-3.2 µm.
  • Honing/Grinding: Achieves ultra-smooth finishes (Ra <0.1 µm).

Production Volume

• High-Volume Production:
  • Methods like broaching and drilling are efficient for mass production due to their high material removal rates and repeatability.
• Low-Volume or Custom Production:
  • Boring and honing are better suited for smaller runs or parts requiring high precision.

Cost Considerations

• Tooling Costs: Methods like broaching have high initial tooling costs, while methods like drilling are more economical for general applications.
• Operational Costs: High-speed operations like drilling are cost-efficient, while slower processes like honing or grinding incur higher operational costs.
• Maintenance Costs: Processes involving high tool wear, such as skiving, may require frequent tool replacement, impacting overall costs.

Available Equipment

• Machine Availability: Ensure the availability of appropriate machinery, such as drilling machines, boring mills, or honing machines.
• Tooling Availability: Access to high-quality tools like drills, reamers, boring bars, or honing stones is essential for successful machining.
• Advanced Equipment: For emerging technologies like laser machining or hybrid methods, the availability of specialized systems can significantly impact feasibility.

Emerging Technologies

Advancements in machining technology are revolutionizing the field, offering innovative solutions to traditional challenges:

Laser Hole Machining

• High Precision: Provides exceptional accuracy and tight tolerances, ideal for micro-holes and intricate internal features.
• Applications: Common in medical devices, electronics, and aerospace components.
• Advantages:
  • Non-contact process eliminates issues like tool deflection or wear.
  • Can machine hard or brittle materials like ceramics and composites.
• Limitations:
  • May produce heat-affected zones if not optimized.
  • High initial cost and slower material removal compared to mechanical methods.

Additive Manufacturing (3D Printing)

• Complex Geometries: Allows the creation of intricate internal channels and cavities that are difficult or impossible to achieve with traditional machining.
• Applications: Used in aerospace, medical, and custom industrial components requiring unique internal features.
• Advantages:
  • Minimal material waste.
  • Reduced need for secondary machining in certain cases.
• Limitations:
  • Surface finish and tolerance often require post-processing.
  • Not cost-effective for high-volume production of simple parts.

Hybrid Methods

• Combining Strengths: Hybrid methods leverage traditional and modern technologies to optimize machining outcomes.
  • Example: Using additive manufacturing to create a complex shape, followed by honing or grinding for precision finishing.
• Applications: Common in advanced manufacturing for turbine blades, medical implants, and other high-performance components.
• Advantages:
  • Improves production efficiency.
  • Enables high precision and surface finish in complex parts.
• Limitations:
  • Requires access to both conventional and advanced machining equipment.
  • May involve higher setup costs and complexity.

Conclusion

Inner hole machining is a critical aspect of manufacturing, requiring a careful balance between precision, efficiency, and cost. By evaluating key factors such as material properties, hole size, tolerance requirements, and production volume, manufacturers can choose the most suitable method for their specific applications.

Traditional methods like drilling, boring, reaming, and honing remain invaluable for their proven reliability, while emerging technologies like laser machining, additive manufacturing, and hybrid approaches are pushing the boundaries of what is achievable in modern manufacturing. These advancements allow for the creation of more complex geometries, tighter tolerances, and enhanced efficiency, catering to the ever-evolving demands of industries such as aerospace, medical devices, and automotive.

As machining technology continues to evolve, embracing both traditional and innovative methods will be essential for staying competitive and delivering high-quality components. By understanding the strengths and limitations of each approach, manufacturers can optimize their processes and achieve exceptional results in inner hole machining.

FAQ:

What are the 4 machining processes?

The four primary machining processes are:

1. Turning: Rotating the workpiece while a cutting tool removes material (e.g., lathe operations).
2. Milling: Using a rotating cutting tool to remove material from a stationary workpiece.
3. Drilling: Creating holes using a rotating drill bit.
4. Grinding: Removing material and refining surfaces using an abrasive wheel.

What are the three types of holes?

The three common types of holes are:

1. Through Hole: A hole that completely penetrates the workpiece.
2. Blind Hole: A hole that does not go all the way through the workpiece, leaving a flat or rounded bottom.
3. Tapered Hole: A hole with a conical shape that narrows towards the bottom.

What are all machining methods?

Machining methods include:

• Drilling: For creating initial holes.
• Reaming: For improving hole accuracy and surface finish.
• Boring: For enlarging and refining existing holes.
• Honing: For achieving extremely fine surface finishes.
• Grinding: For high-precision machining of surfaces and holes.
• Broaching: For creating specific shapes like keyways or splines.
• Skiving: For high-speed removal in hardened materials.
• Laser Machining: For non-contact precision cutting.
• EDM (Electrical Discharge Machining): For machining hard-to-machine materials.
• Additive Manufacturing: For building parts layer by layer with internal features.

What are the different types of bolt holes?

The common types of bolt holes are:

1. Clearance Hole: A hole slightly larger than the bolt diameter, allowing easy insertion.
2. Threaded Hole: A hole with internal threads that directly accept a bolt or screw.
3. Counterbore Hole: A hole with a larger recessed area to fit the bolt head flush with the surface.
4. Countersink Hole: A hole with a conical recess for a flathead screw or bolt.
5. Tapped Hole: Similar to a threaded hole but explicitly prepared for cutting threads.
6. Slotted Hole: An elongated hole for accommodating alignment or adjustment.
