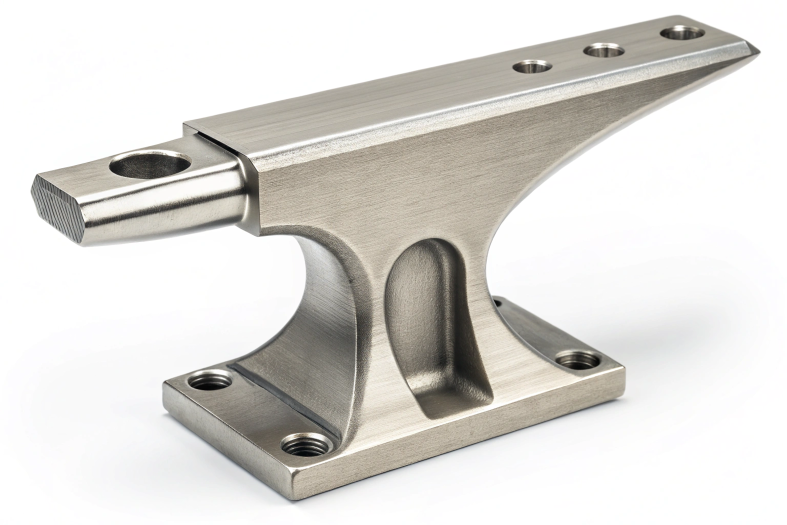

In CNC machining, product performance often depends on material properties, which can be significantly enhanced through heat treatment. Without proper heat treatment, components risk cracking under stress or wearing out prematurely, leading to wasted resources and potential damage to your company’s reputation. Heat treatment transforms material properties, ensuring CNC-machined parts achieve optimal strength, durability, and wear resistance, making them reliable for demanding applications.
Heat treatment involves controlled heating and cooling processes that alter material properties. Key methods include annealing, normalizing, quenching, and tempering, each with a specific role in enhancing CNC-machined components' performance.
Direct Answer:
Heat treatment improves CNC-machined parts by enhancing material properties like hardness, strength, toughness, and machinability.
- Hardness and Wear Resistance: Quenching creates harder surfaces for parts like gears and cutting tools.
- Strength and Toughness: Tempering reduces brittleness while maintaining strength, enabling parts to handle impact and stress.
- Machinability: Annealing softens materials, reducing tool wear and improving machinability.
- Dimensional Stability: Normalizing relieves internal stresses, preventing warping and ensuring precision.
What is Heat Treatment?
Heat treatment is a controlled process that changes a material's microstructure to achieve specific mechanical or physical properties. This is achieved by subjecting the material to precise cycles of heating, holding at a target temperature, and controlled cooling. The primary purpose is to tailor the material's properties, such as hardness, toughness, and machinability, to meet application requirements.
Common heat treatment processes include:
- Annealing: Softens the material, improves ductility, and relieves internal stresses.
- Normalizing: Produces a uniform and refined grain structure, improving toughness and strength consistency.
- Quenching: Rapid cooling from a high temperature to increase hardness and strength, though often resulting in brittleness.
- Tempering: A subsequent process after quenching to reduce brittleness and improve ductility and toughness.
Why Use Heat Treatment in CNC Machining?
Heat treatment is a critical secondary process in CNC machining that significantly influences the mechanical properties and lifespan of manufactured parts. By altering the material's microstructure, heat treatment enables manufacturers to tailor properties such as hardness, strength, ductility, and toughness to meet specific application requirements.
Improved Hardness and Strength
-
Hardness:
Heat treatments like quenching increase a material's resistance to indentation, wear, and scratching. This transformation occurs by creating harder phases, such as martensite in steel. For example, gears, bearings, and cutting tools require high hardness to endure abrasive conditions and maintain functionality over time. -
Strength:
Heat treatment enhances a material's tensile and yield strength, enabling it to resist deformation or fracture under load. Processes like quenching followed by tempering provide an optimal balance between strength and toughness, making it ideal for high-stress structural components.
Enhanced Ductility and Toughness
-
Ductility:
Ductility refers to a material's ability to deform plastically without fracturing. While quenching increases hardness, it also reduces ductility. Tempering after quenching restores ductility, allowing materials to flex under stress without failure. -
Toughness:
Toughness is the material's ability to absorb energy before fracturing, which is critical for components subjected to dynamic or impact loads. Processes like tempering and normalizing refine the material's grain structure and reduce brittleness, improving its capacity to handle shocks and vibrations.
Stress Relief
CNC machining processes, such as milling and turning, introduce residual stresses into the material. These stresses can lead to warping, cracking, or distortion during subsequent operations or under operational conditions.
-
Annealing:
This process relieves internal stresses by heating the material to a specific temperature, holding it, and then slowly cooling it in the furnace. The result is a more uniform and stress-free microstructure. -
Normalizing:
Normalizing provides partial stress relief while also enhancing toughness. It involves air cooling, which is faster than annealing and results in finer grain structures and improved mechanical properties.
Improved Machinability
-
Annealing:
Softening materials through annealing reduces cutting forces and tool wear, making the machining process more efficient. This leads to better surface finishes and tighter tolerances, particularly beneficial when machining hardened steels or tough alloys. -
Pre-Heat Treatment for Machinability:
Pre-treated materials are easier to shape and cut, which improves production efficiency and reduces costs.
Corrosion Resistance
-
Surface Hardening:
Processes like nitriding or carburizing not only create a wear-resistant surface layer but also improve corrosion resistance. This protective layer shields the material from environmental factors such as humidity, salt spray, and chemicals. -
Tempering:
While primarily used to adjust hardness and toughness, tempering can also reduce residual stresses that contribute to corrosion initiation, particularly in certain alloys.
Common Heat Treatment Processes Used in CNC Machining
Annealing
- Purpose:
To soften the material, relieve internal stresses, and improve machinability. - Process:
The material is heated to above its recrystallization temperature, held at that temperature (soaking), and then cooled slowly, typically in the furnace. - Effects:
- Reduces hardness and strength.
- Improves ductility and toughness.
- Refines the grain structure.
- Applications:
Often used for steels, aluminum alloys, and copper alloys to prepare them for subsequent machining or forming operations.
Normalizing
- Purpose:
To refine grain structure, improve toughness and ductility, and remove residual stresses. - Process:
The material is heated to a temperature slightly above its critical range, held to allow full transformation, and then cooled in air. - Effects:
- Produces a more uniform and finer grain structure than annealing.
- Increases mechanical properties, particularly toughness.
- Applications:
Used for low-carbon and medium-carbon steels in structural components like shafts and weldments.
Quenching
- Purpose:
To significantly increase hardness and strength. - Process:
The material is heated to a high temperature (austenitizing temperature for steels), held, and then rapidly cooled in oil, water, or air. - Effects:
- Creates a hard martensitic structure.
- Increases brittleness, often requiring tempering afterward.
- Applications:
Common for cutting tools, gears, and high-strength components subjected to wear and stress.
Tempering
- Purpose:
To reduce brittleness, improve toughness and ductility, and relieve residual stresses from quenching. - Process:
The quenched material is reheated to a lower temperature (below its critical point) and then cooled. - Effects:
- Balances hardness and toughness.
- Reduces internal stresses and brittleness.
- Applications:
Commonly applied to springs, shafts, and other dynamic load-bearing components.
When to Heat Treat: Before or After Machining?
The decision of whether to heat treat before or after machining is a critical consideration in manufacturing. Each approach has distinct advantages and disadvantages, influenced by the material, part geometry, and desired properties.
Before Machining (Pre-Heat Treatment)
Advantages:
-
Improved Machinability:
Softer materials are significantly easier to machine, requiring lower cutting forces and reducing tool wear. This enables faster cutting speeds and results in improved surface finishes, ultimately saving on tooling costs and machining time.
Example: Annealed steel is commonly used for parts with complex geometries or extensive machining. -
Reduced Machining Time:
Softer pre-heat-treated materials allow for quicker material removal rates, shortening overall production cycles. -
Availability of Pre-Hardened Stock:
Materials such as pre-hardened tool steels (e.g., H13) are readily available, eliminating the need for in-house heat treatment before machining, simplifying the workflow, and reducing lead times.
Disadvantages:
-
Loss of Hardened Surface Layers:
Machining processes may remove surface layers hardened by heat treatment, particularly in case-hardened materials, compromising surface properties like wear resistance. -
Potential for Distortion During Subsequent Heat Treatment:
Residual stresses introduced during machining can lead to warping or dimensional changes when parts are heat treated after machining. -
Increased Tool Wear if Insufficient Softening:
If the material is not sufficiently softened during pre-heat treatment, tool wear may still occur, although it is less severe compared to machining fully hardened material.
After Machining (Post-Heat Treatment)
Advantages:
-
Uniform and Controlled Properties:
Heat treating after machining ensures uniform mechanical properties across the entire part, including critical machined surfaces, improving overall performance and reliability. -
Preservation of Surface Integrity:
Machined surfaces remain intact without the risk of being altered by subsequent machining processes, ensuring optimal surface finish and dimensional accuracy. -
Minimized Distortion During Machining:
By machining the part to final dimensions before heat treatment, risks of removing hardened layers or introducing machining stresses are avoided.
Disadvantages:
-
Increased Machining Difficulty:
Hardened materials are more challenging to machine, requiring specialized tooling, slower cutting speeds, and increased cutting forces. This leads to higher machining costs and prolonged production times. -
Risk of Distortion or Warping:
Thin-walled or complex geometries are prone to distortion during post-machining heat treatment, potentially requiring additional finishing operations to meet tolerances. -
Added Time and Cost:
Post-machining heat treatment adds another step to the process, increasing lead times and overall production expenses.
Material Considerations
Different materials respond uniquely to heat treatment processes due to their inherent chemical compositions and microstructures. The selection of appropriate processes depends heavily on the material's properties and the desired application.
Steel
Steel is the most versatile material for heat treatment, suitable for a wide range of processes:
- Annealing: To soften steel for easier machining.
- Normalizing: To refine grain structure and enhance toughness.
- Quenching and Tempering: To achieve an optimal combination of hardness and toughness.
- Case Hardening (Carburizing, Nitriding): To harden the surface for wear resistance while maintaining a tough core.
Aluminum
Aluminum alloys have more limited heat treatment options compared to steel:
- Solution Heat Treatment: Dissolves alloying elements to form a supersaturated solid solution.
- Aging (Precipitation Hardening): Strengthens the material through the controlled precipitation of alloying elements.
Titanium
Titanium requires precise temperature control due to its sensitivity to overheating:
- Annealing: Relieves internal stresses and improves ductility.
- Solution Treatment and Aging: Enhances strength and creep resistance, particularly for aerospace components.
Other Materials
- Copper and Brass: Softened through annealing to improve machinability or ductility.
- Nickel Alloys: Heat treated to enhance strength and corrosion resistance, particularly for high-temperature applications.

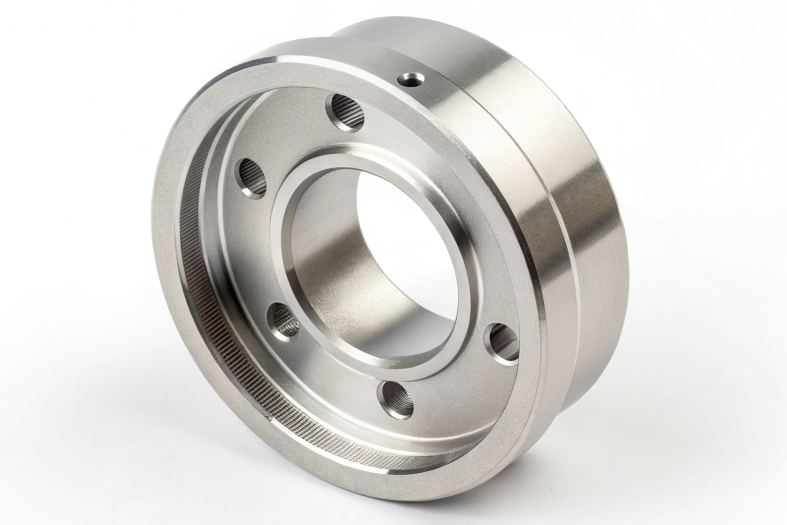

Examples of Heat Treatment Applications in CNC Machining
Heat treatment is indispensable for tailoring material properties to meet the demands of specific industries and applications.

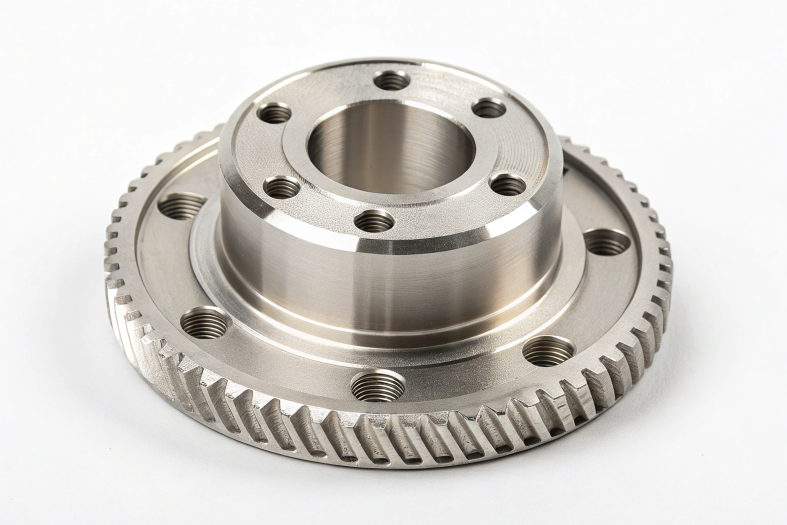

Gears
- Processes: Quenching and tempering or case hardening.
- Purpose: Achieve a wear-resistant surface and a tough core to withstand impact and high-load conditions.
- Applications: Automotive transmissions and industrial gear systems.
Shafts
- Processes: Normalizing and tempering.
- Purpose: Provide strength, toughness, and fatigue resistance for rotational and bending loads.
- Applications: Drive shafts, spindles, and axles in automotive and industrial machinery.
Dies and Molds
- Processes: Quenching followed by tempering.
- Purpose: Enhance wear resistance and extend tool life under high pressures and repeated use.
- Applications: Forging dies, injection molds, and extrusion dies.
Cutting Tools
- Processes: Quenching for hardness and tempering for toughness.
- Purpose: Maintain sharp cutting edges while preventing brittle fracture.
- Applications: Drills, end mills, and CNC lathe tools used in precision machining.
Challenges in Heat Treatment and Solutions
Heat treatment, while essential for enhancing material properties, presents various challenges that can affect the quality and consistency of CNC-machined parts. Addressing these issues requires a combination of advanced equipment, precise process control, and an in-depth understanding of material behavior.
Challenges
-
Warping or Distortion During Cooling
- Cause: Uneven cooling rates can induce residual stresses, leading to deformation such as warping or bending. Thin-walled parts, complex geometries, and materials with high thermal expansion coefficients are particularly vulnerable.
- Impact: Distorted parts may fail to meet dimensional tolerances, requiring additional machining or scrapping.
-
Cracking
- Cause: Rapid cooling during quenching creates excessive internal stresses, especially in brittle materials or components with sharp edges and stress concentrations.
- Impact: Cracks compromise the structural integrity of the part, rendering it unusable.
-
Inconsistent Properties (Overheating/Underheating)
- Cause: Overheating leads to grain growth and phase transformations, while underheating results in incomplete transformations and uneven hardness.
- Impact: The part may exhibit inconsistent mechanical properties, reducing reliability.
-
Oxidation and Decarburization
- Cause: Exposure to oxygen at high temperatures can lead to surface oxidation and decarburization, reducing hardness and corrosion resistance.
- Impact: These surface defects compromise the part's appearance and performance.
-
Non-Uniform Heating
- Cause: Uneven temperature distribution within the furnace or across the part results in inconsistent microstructures.
- Impact: This inconsistency can lead to weak spots and variations in mechanical properties.
Solutions
-
Precise Temperature Control Systems
- Description: Use advanced temperature controllers, thermocouples, and furnace designs to ensure accurate and uniform heating.
- Benefit: Reduces risks of overheating, underheating, and uneven heat distribution.
-
Controlled Cooling Rates
- Description: Implement programmable cooling rates and use appropriate quenching media (oil, water, air) tailored to the material and part geometry.
- Benefit: Minimizes residual stresses and reduces the likelihood of warping or cracking.
-
Fixturing and Support
- Description: Secure parts with specialized fixtures during heat treatment to prevent deformation.
- Benefit: Maintains dimensional accuracy, especially for complex or thin-walled components.
-
Protective Atmospheres
- Description: Use inert gases (e.g., nitrogen, argon) or vacuum environments to prevent oxidation and decarburization during heating.
- Benefit: Preserves surface quality and ensures consistent mechanical properties.
-
Process Simulation and Modeling
- Description: Utilize simulation software to optimize heat treatment parameters and predict potential issues like distortion or cracking.
- Benefit: Saves time and reduces defects by allowing virtual testing before production.
-
Material Selection and Pre-Treatment
- Description: Choose materials suited for the application and apply pre-treatments like stress relieving to improve performance during heat treatment.
- Benefit: Enhances process outcomes and minimizes risks of defects.
Future Trends in Heat Treatment for CNC Machining
The field of heat treatment is evolving rapidly, with innovations aimed at improving efficiency, sustainability, and precision.
AI and Machine Learning
-
Predictive Modeling and Process Optimization
- Description: AI algorithms analyze large datasets from heat treatment processes to predict outcomes and optimize parameters like temperature, time, and cooling rates.
- Impact: Reduces process variability, enhances consistency, and minimizes defects.
-
Real-Time Monitoring and Control
- Description: AI-powered systems detect anomalies during heat treatment in real-time and make adjustments to maintain optimal conditions.
- Impact: Improves process reliability and reduces scrap rates.
-
Material Property Prediction
- Description: Machine learning models predict material properties based on microstructure analysis, enabling precise material selection and process design.
- Impact: Facilitates better customization of heat treatment processes.
Eco-Friendly Techniques
-
Vacuum Heat Treatment
- Description: Vacuum furnaces eliminate the need for protective gases, reducing emissions and improving surface quality.
- Impact: Reduces environmental footprint while achieving superior results.
-
Low-Energy Processes
- Description: Techniques like induction heating or localized heat treatment minimize energy consumption by focusing only on the required areas.
- Impact: Lowers operational costs and enhances sustainability.
-
Waste Heat Recovery
- Description: Systems capture and reuse heat generated during treatment processes to reduce energy usage.
- Impact: Improves energy efficiency and lowers operational expenses.
Advanced Equipment
-
High-Speed and High-Precision Furnaces
- Description: Modern furnaces enable faster heating and cooling rates with precise temperature control.
- Impact: Enhances throughput and quality, reducing production times.
-
Induction Heating
- Description: Provides rapid and localized heating, ideal for specific areas of complex parts.
- Impact: Reduces distortion and improves efficiency.
-
Integration with Additive Manufacturing (3D Printing)
- Description: On-demand heat treatment of 3D-printed parts optimizes material properties without additional processing steps.
- Impact: Streamlines manufacturing workflows and enhances part performance.
Conclusion
Heat treatment is an indispensable process in CNC machining, profoundly impacting the performance, durability, and precision of machined parts. By understanding and leveraging techniques like annealing, normalizing, quenching, and tempering, manufacturers can tailor material properties to meet specific requirements across industries.
While heat treatment presents challenges such as warping, cracking, and inconsistent properties, these issues can be mitigated through advanced technologies, precise process controls, and material-specific strategies. Furthermore, innovations such as AI-driven optimization, eco-friendly techniques, and advanced heat treatment equipment are shaping the future of this field, making processes more efficient, reliable, and sustainable.
Ultimately, the careful integration of heat treatment into CNC machining workflows not only enhances product quality but also ensures that components meet the rigorous demands of modern applications in industries like aerospace, automotive, and medical devices. The synergy of CNC machining and heat treatment is a cornerstone of advanced manufacturing, delivering unparalleled performance and value.
FAQ:
How does heat treatment affect machinability?
Heat treatment can significantly improve machinability by softening the material. Processes like annealing reduce hardness and internal stresses, making the material easier to cut, reducing tool wear, and enhancing surface finishes. Conversely, treatments like quenching increase hardness, making machining more challenging and requiring specialized tools.
What is the expected effect of the heat treatment procedure?
The expected effects of heat treatment depend on the specific process used:
- Annealing: Softens the material and improves ductility.
- Normalizing: Refines grain structure and enhances toughness.
- Quenching: Increases hardness and strength, often at the cost of ductility.
- Tempering: Balances hardness and toughness, reducing brittleness from quenching.
These changes enhance material performance for specific applications, such as wear resistance, impact strength, or machinability.
What is the purpose of the heat treatment process?
The primary purpose of heat treatment is to alter the material's microstructure to achieve desired mechanical and physical properties. This includes:
- Improving hardness and strength.
- Enhancing toughness and ductility.
- Relieving residual stresses.
- Increasing wear and corrosion resistance.
Heat treatment tailors material performance to meet application-specific requirements.
How does heat treatment affect strength?
Heat treatment affects strength by altering the material's internal structure:
- Quenching: Significantly increases tensile and yield strength by creating hard phases like martensite.
- Tempering: Adjusts the strength-to-toughness ratio, reducing brittleness while maintaining sufficient strength.
- Normalizing: Enhances uniformity and refines grain structure, increasing overall material strength.
These processes ensure the material can handle greater loads without deformation or failure.
